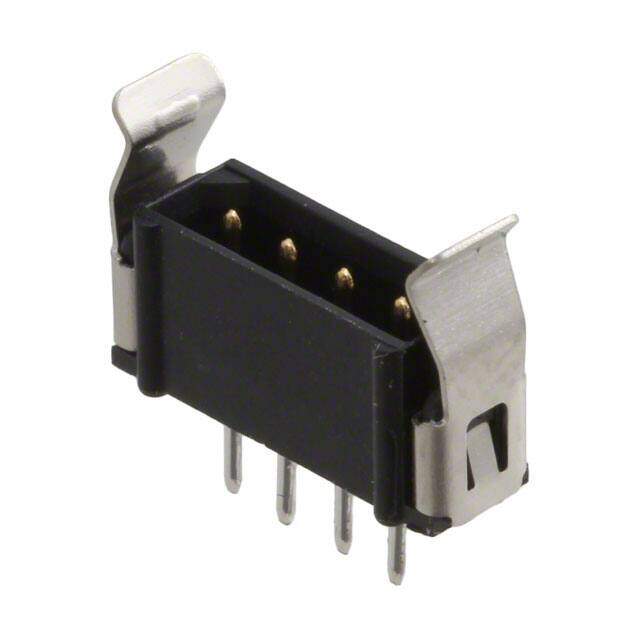

M80-8810442
RoHS
RoHS compliant
RoHS compliantPackage SIL
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings 4 POS SIL VERT MALE FRICTION LATCH TIN
PDF
/
Inventory: 4182
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Material Phosphor Bronze
Contact Plating Gold, Tin
Mount Through Hole
Mounting Type Through Hole
Package / Case SIL
Contact Shape Circular
Insulation Material Polyamide (PA46), Nylon 4/6, Glass Filled
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2012
Series Datamate L-Tek
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 4
Number of Rows 1
Voltage - Rated 800V
Additional Feature LATCHED
Fastening Type Friction Lock
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 2.2A
Terminal Pitch 2mm
Insulation Height 0.219 5.56mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Contact Length - Post 0.118 3.00mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 1
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Contact Gender Male
Contact Resistance 25mOhm
Mating Contact Pitch 0.079 inch
Durability 500 Cycles
Insertion Force-Max 2.78 N
Dimensions
Plating Thickness 30μin
Contact Finish Thickness - Mating 29.5μin 0.75μm
Contact Finish Thickness - Post 118.1μin 3.00μm
Stack Height (Mating) 7.23mm 10.2mm 13.46mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
