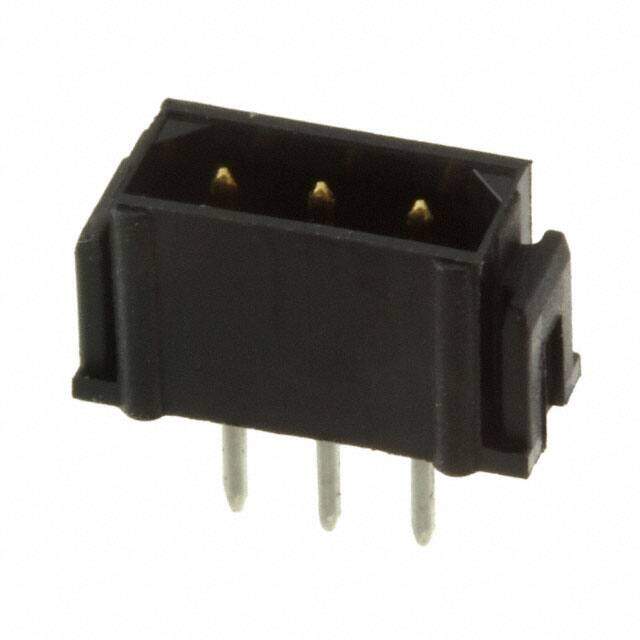

M80-8790322
RoHS
/
Package SIL
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings 3 POS SIL MALE VERT UNLATCHED TINLD
PDF
/
Inventory: 2788
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Package / Case SIL
Contact Shape Circular
Insulation Material Polybutylene Terephthalate (PBT), Glass Filled
Housing Material Polyester
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2009
Series Datamate L-Tek
JESD-609 Code e0
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 3
Number of Rows 1
Additional Feature POLARIZED, SHROUDED
Fastening Type Latch Holder
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 2.2A
Orientation Straight
Terminal Pitch 2mm
Depth 3.98mm
Insulation Height 0.219 5.56mm
Style Board to Board or Cable
Number of Positions Loaded All
Reach Compliance Code not_compliant
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Contact Length - Post 0.118 3.00mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 1
Contact Finish - Post Tin-Lead
PCB Contact Pattern RECTANGULAR
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender Male
UL Flammability Code 94V-0
Contact Resistance 25mOhm
Mating Contact Pitch 0.079 inch
Max Voltage Rating (AC) 800V
Max Current Rating 3A
Durability 500 Cycles
Insertion Force-Max 2.78 N
Dimensions
Length 9.6mm
Contact Finish Thickness - Mating 29.5μin 0.75μm
Contact Finish Thickness - Post 118.1μin 3.00μm
Stack Height (Mating) 7.23mm 10.2mm 13.46mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status Non-RoHS Compliant
