M80-8770322
RoHS
/
Package SIL
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

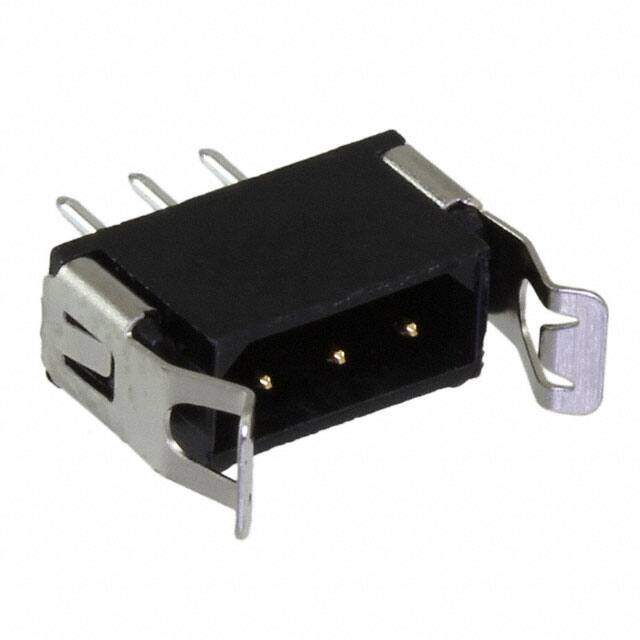

Headers & Wire Housings 3 POS SIL MALE VERT LATCHED TIN/LD
PDF
/
Buying Options
Total Price: USD $2.97
Unit Price: USD $2.9744
≥1 USD $2.9744
≥10 USD $2.558767
≥100 USD $2.380233
≥500 USD $2.023173
≥1000 USD $1.725654
≥3000 USD $1.547137
Inventory: 40
Minimum: 1
-
+
Technical Details
Dimensions
Contact Finish Thickness - Post 118.1μin 3.00μm
Stack Height (Mating) 7.23mm 10.2mm 13.46mm
Contact Finish Thickness - Mating 29.5μin 0.75μm
Plating Thickness 29μin
Length 10mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status Non-RoHS Compliant
Technical
Insertion Force-Max 2.78 N
Durability 500 Cycles
Max Current Rating 3A
Max Voltage Rating (AC) 800V
Mating Contact Pitch 0.079 inch
Contact Resistance 25mOhm
Housing Color Black
UL Flammability Code 94V-0
Contact Gender Male
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin-Lead
Number Of PCB Rows 1
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.118 3.00mm
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.079 2.00mm
Current Rating 3A
Reach Compliance Code not_compliant
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.219 5.56mm
Depth 3.98mm
Terminal Pitch 2mm
Orientation Straight
Current Rating (Amps) 2.2A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Latch Lock
Additional Feature LATCHED
Number of Rows 1
Number of Positions 3
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code no
JESD-609 Code e0
Series Datamate L-Tek
Published 2009
Packaging Tube
Operating Temperature -55°C~125°C
Physical
Housing Material Polyester
Insulation Material Polyester, Glass Filled
Contact Shape Circular
Package / Case SIL
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 11 Weeks
Alternative Model
