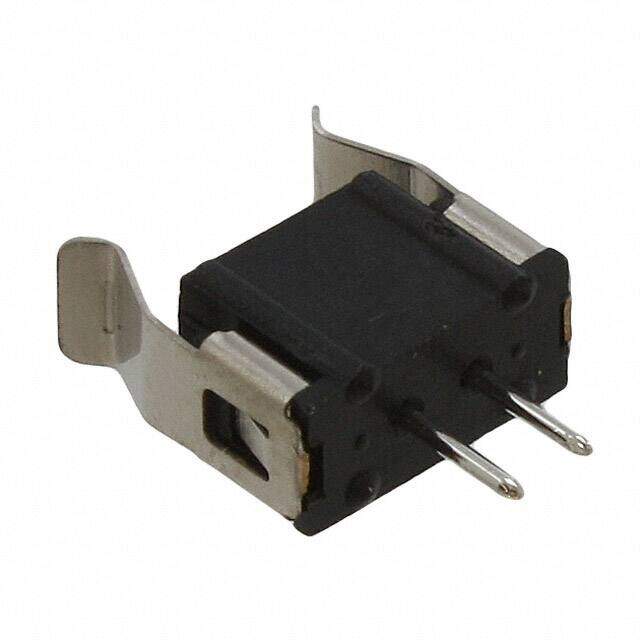

M80-8770222
RoHS
/
Package SIL
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings 2 POS SIL MALE VERT LATCHED TIN/LD
PDF
/
Buying Options
Total Price: USD $2.86
Unit Price: USD $2.86
≥1 USD $2.86
≥10 USD $2.461254
≥100 USD $2.289584
≥500 USD $1.94612
≥1000 USD $1.659926
≥3000 USD $1.488203
Inventory: 1582
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Package / Case SIL
Contact Shape Circular
Insulation Material Polyester, Glass Filled
Housing Material Polyester
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2006
Series Datamate L-Tek
JESD-609 Code e0
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 2
Number of Rows 1
Additional Feature LATCHED
HTS Code 8536.69.40.40
Fastening Type Latch Lock
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 2.2A
Orientation Straight
Depth 3.98mm
Insulation Height 0.219 5.56mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.079 2.00mm
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Contact Length - Post 0.118 3.00mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 1
Contact Finish - Post Tin-Lead
PCB Contact Pattern RECTANGULAR
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender Male
UL Flammability Code 94V-0
Housing Color Black
Contact Resistance 25mOhm
Mating Contact Pitch 0.079 inch
Max Voltage Rating (AC) 800V
Max Current Rating 3A
Durability 500 Cycles
Dimensions
Length 8mm
Contact Finish Thickness - Mating 29.5μin 0.75μm
Contact Finish Thickness - Post 118.1μin 3.00μm
Stack Height (Mating) 7.23mm 10.2mm 13.46mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status Non-RoHS Compliant
