M80-8410842
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

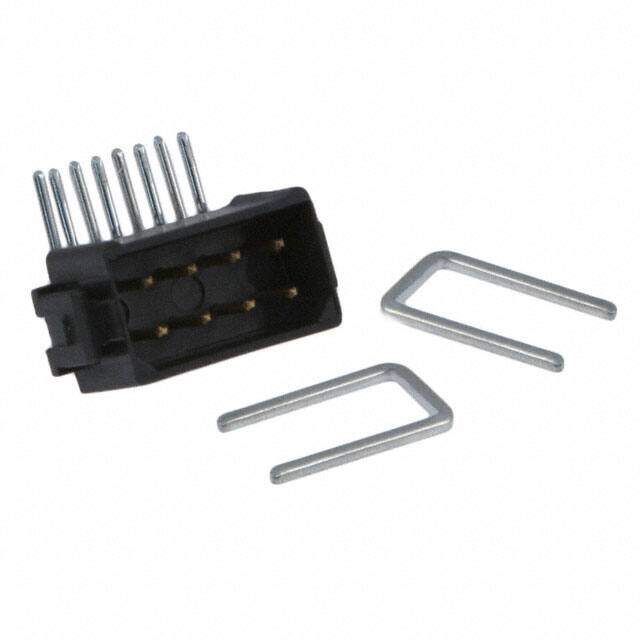

CONN HDR 2MM R/A DUAL 8POS
PDF
/
Buying Options
Total Price: USD $3.56
Unit Price: USD $3.564
≥1 USD $3.564
≥10 USD $3.2384
≥100 USD $2.853048
≥500 USD $2.425095
≥1000 USD $2.068466
Inventory: 556
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 11 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Circular
Insulation Material Polyamide (PA46), Nylon 4/6
Material Glass, Thermoplastic
Housing Material Polyamide
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2006
Series Datamate L-Tek
JESD-609 Code e3
Feature Strain Relief Clips
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Plug
Number of Rows 2
Additional Feature ROHS COMPLIANT
Fastening Type Latch Holder
Subcategory Headers and Edge Type Connectors
Voltage - Rated DC 120V
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 2.2A
Orientation Right Angle
Depth 7.9mm
Insulation Height 0.235 5.97mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.079 2.00mm
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.079 (2.00mm)
Contact Length - Post 0.118 3.00mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Lead Pitch 2mm
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Contact Gender Male
UL Flammability Code 94V-0
Housing Color Black
Working Voltage 120V
Contact Resistance 25mOhm
Insulation Resistance 100mOhm
Mating Contact Pitch 0.079 inch
Max Voltage Rating (AC) 120V
Max Current Rating 3A
Durability 500 Cycles
Wire/Cable Gauge 22 AWG
Number of Poles 8
Max Voltage Rating (DC) 120V
Dimensions
Length 11.6mm
Plating Thickness 30μin
Contact Finish Thickness - Mating 29.5μin 0.75μm
Contact Finish Thickness - Post 118.1μin 3.00μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
