M80-6672042
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

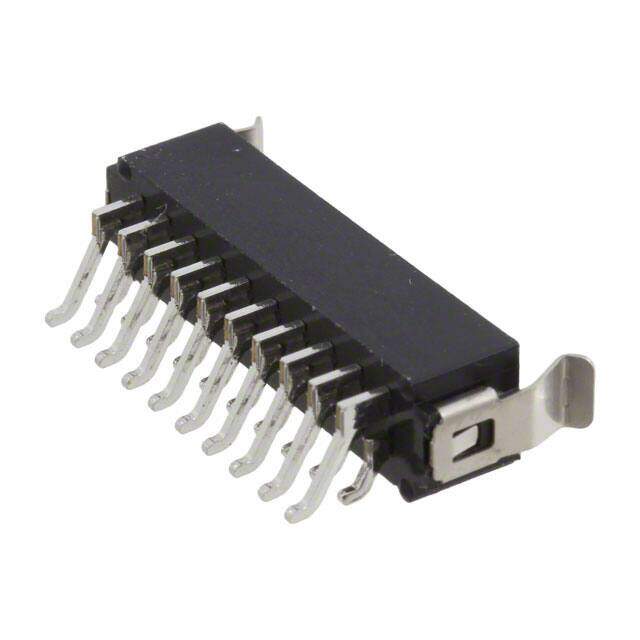

HARWIN M80-6672042 Wire-To-Board Connector, Right Angle, Datamate L-Tek M80-66 Series, Surface Mount, Plug
PDF
/
Inventory: 3450
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Brass
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Contact Shape Circular
Insulation Material Polyphenylene Sulfide (PPS), Glass Filled
Housing Material Polyamide
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2009
Series Datamate L-Tek
JESD-609 Code e3
Feature Strain Relief Clips
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Plug
Number of Positions 20
Number of Rows 2
Voltage - Rated 800V
Additional Feature LATCHED
HTS Code 8536.69.40.40
Fastening Type Friction Lock
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 2.2A
Total Number of Contacts 20
Orientation Right Angle
Insulation Height 0.235 5.97mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 0.949 inch
Row Spacing - Mating 0.079 (2.00mm)
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Contact Gender Male
UL Flammability Code 94V-0
Body Depth 0.394 inch
Contact Resistance 25mOhm
Insulation Resistance 100MOhm
Mating Contact Pitch 0.079 inch
Polarization Key POLARIZED HOUSING
Durability 500 Cycles
Withdrawl Force-Min .1946 N
Dimensions
Plating Thickness 30μin
Contact Finish Thickness - Mating 29.5μin 0.75μm
Contact Finish Thickness - Post 118.1μin 3.00μm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Alternative Model
Recommended For You
