M80-5T11405B1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

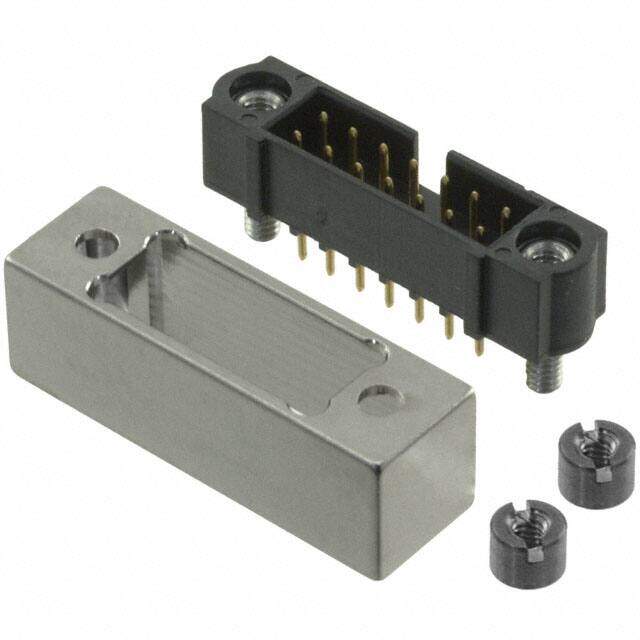

CONN HDR 2MM VERT SHLD 14POS AU
PDF
/
Inventory: 4274
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Polyphenylene Sulfide (PPS), Glass Filled
Technical
Operating Temperature -55°C~121°C
Packaging Tube
Published 2010
Series Datamate S-Tek
JESD-609 Code e4
Feature Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware, Shielded
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 14
Number of Rows 2
Voltage - Rated 120V
HTS Code 8536.69.40.40
Fastening Type Threaded
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 2.2A
Insulation Height 0.319 8.10mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 0.984 inch
Row Spacing - Mating 0.079 (2.00mm)
Contact Length - Post 0.106 2.69mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
PCB Contact Pattern RECTANGULAR
Body Breadth 0.311 inch
Contact Gender Male
UL Flammability Code 94V-0
Body Depth 0.319 inch
Insulation Resistance 100000000Ohm
Mating Contact Pitch 0.079 inch
Durability 500 Cycles
Dimensions
Contact Finish Thickness - Mating 29.5μin 0.75μm
Contact Finish Thickness - Post 29.5μin 0.75μm
Length - Termination 0.106 inch
Stack Height (Mating) 33.55mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
