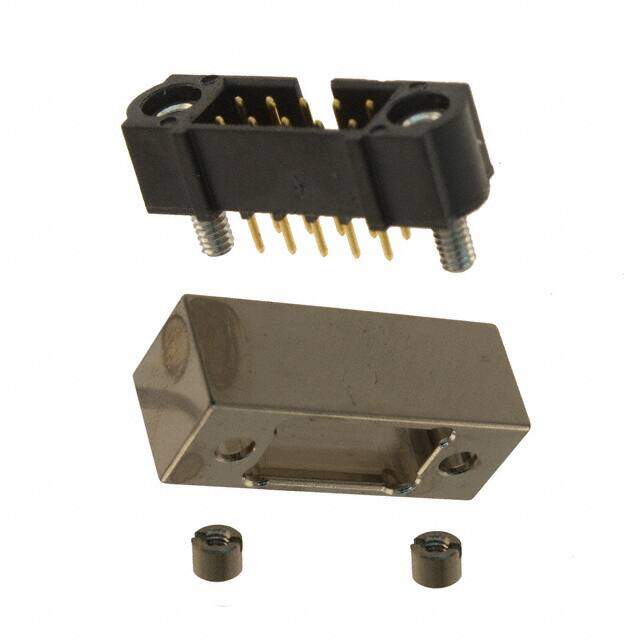

M80-5T11005B1
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HDR 2MM VERT SHLD 10POS AU
PDF
/
Inventory: 1570
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Stack Height (Mating) 33.55mm
Contact Finish Thickness - Post 29.5μin 0.75μm
Contact Finish Thickness - Mating 29.5μin 0.75μm
Technical
Durability 500 Cycles
Mating Contact Pitch 0.079 inch
Body Depth 0.319 inch
UL Flammability Code 94V-0
Contact Gender Male
Body Breadth 0.311 inch
PCB Contact Pattern RECTANGULAR
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.106 2.69mm
Row Spacing - Mating 0.079 (2.00mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.319 8.10mm
Current Rating (Amps) 2.2A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Threaded
Voltage - Rated 120V
Number of Rows 2
Number of Positions 10
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
Feature Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware, Shielded
JESD-609 Code e4
Series Datamate S-Tek
Published 2010
Packaging Tube
Operating Temperature -55°C~121°C
Physical
Insulation Material Polyphenylene Sulfide (PPS), Glass Filled
Contact Shape Circular
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 7 Weeks
Alternative Model
