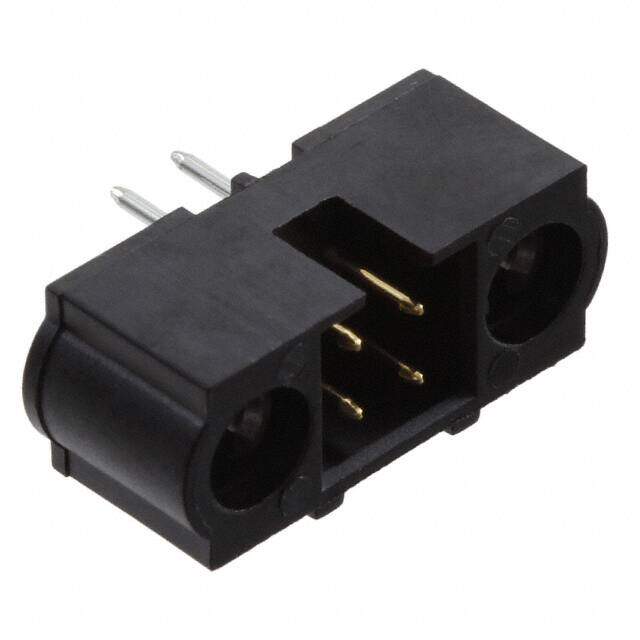

M80-5T10442MC
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
101-LOK TRIO TEK MALE VERTICAL
PDF
/
Buying Options
Total Price: USD $8.93
Unit Price: USD $8.9252
≥1 USD $8.9252
≥10 USD $8.42
Inventory: 24
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Stack Height (Mating) 7.3mm 7.7mm 9.75mm 10.75mm 13.35mm 14.75mm
Contact Finish Thickness - Post 118.1μin 3.00μm
Contact Finish Thickness - Mating 29.5μin 0.75μm
Length 14mm
Technical
Durability 500 Cycles
Max Current Rating 3A
Max Voltage Rating (AC) 120V
Mating Contact Pitch 0.079 inch
Insulation Resistance 100MOhm
Contact Resistance 25mOhm
Housing Color Black
PCB Contact Pattern RECTANGULAR
Contact Finish - Post Tin
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.130 3.30mm
Row Spacing - Mating 0.079 (2.00mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.079 2.00mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.220 5.60mm
Depth 6.05mm
Orientation Straight
Current Rating (Amps) 2.2A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Turn Lock
Gender Male
Number of Rows 2
Number of Positions 4
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Keying Slot, Mating Flange
JESD-609 Code e3
Series Datamate J-Tek
Published 2011
Packaging Tube
Operating Temperature -55°C~121°C
Physical
Housing Material Polyphenylene
Insulation Material Polyphenylene Sulfide (PPS), Glass Filled
Contact Shape Circular
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 9 Weeks
Alternative Model
