M80-5400442
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

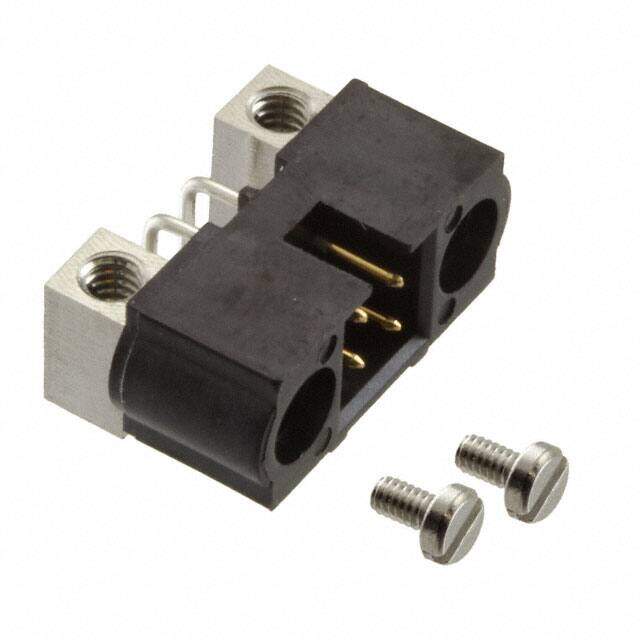

Datamate J-tek 2.00MM R/a Pcb Header 4P
PDF
/
Buying Options
Total Price: USD $16.69
Unit Price: USD $16.6936
≥1 USD $16.6936
≥10 USD $14.621693
≥100 USD $13.087395
≥500 USD $12.004265
Inventory: 1252
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Phosphor Bronze
Contact Plating Gold, Tin
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Circular
Insulation Material Polyphenylene Sulfide (PPS), Glass Filled
Technical
Operating Temperature -55°C~125°C
Packaging Tube
Published 2013
Series Datamate J-Tek
JESD-609 Code e3
Feature Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 4
Number of Rows 2
Voltage - Rated 800V
Fastening Type Threaded
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 2.2A
Orientation Right Angle
Insulation Height 0.218 5.55mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.079 (2.00mm)
Contact Length - Post 0.118 3.00mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Contact Finish - Post Tin
PCB Contact Pattern RECTANGULAR
Contact Gender Male
Insulation Resistance 100000000Ohm
Mating Contact Pitch 0.079 inch
Polarization Key POLARIZED HOUSING
Durability 500 Cycles
Dimensions
Length 14mm
Plating Thickness 30μin
Contact Finish Thickness - Mating 29.5μin 0.75μm
Contact Finish Thickness - Post 118.1μin 3.00μm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
