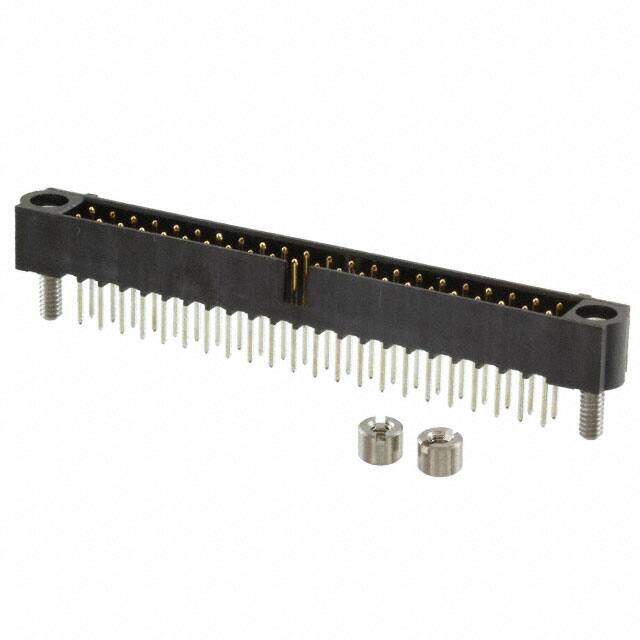

M80-5114422
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings 22+22 POS VERT MALE 4.5mm TL W/JS TIN
PDF
/
Buying Options
Total Price: USD $17.03
Unit Price: USD $17.028
≥1 USD $17.028
≥10 USD $14.75408
≥100 USD $12.160104
≥500 USD $11.106234
Inventory: 253
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Circular
Insulation Material Polyphenylene Sulfide (PPS), Glass Filled
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Published 2012
Series Datamate J-Tek
JESD-609 Code e0
Feature Keying Slot, Mating Flange, Mounting Flange, Mounting Hardware
Pbfree Code no
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 44
Number of Rows 2
Voltage - Rated 800V
Additional Feature PANEL MOUNTABLE
HTS Code 8536.69.40.40
Fastening Type Threaded
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 2.2A
Insulation Height 0.220 5.60mm
Style Board to Board or Cable
Number of Positions Loaded All
Reach Compliance Code not_compliant
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.079 (2.00mm)
Contact Length - Post 0.173 4.40mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Contact Finish - Post Tin-Lead
PCB Contact Pattern RECTANGULAR
Mating Information MULTIPLE MATING PARTS AVAILABLE
Contact Gender Male
UL Flammability Code 94V-0
Insulation Resistance 100000000Ohm
Mating Contact Pitch 0.079 inch
Polarization Key POLARIZED HOUSING
Durability 500 Cycles
Dimensions
Plating Thickness 30μin
Contact Finish Thickness - Mating 29.5μin 0.75μm
Contact Finish Thickness - Post 118.1μin 3.00μm
Length - Termination 0.173 inch
Stack Height (Mating) 7.3mm 7.7mm 9.75mm 10.75mm 13.35mm 14.75mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Alternative Model
