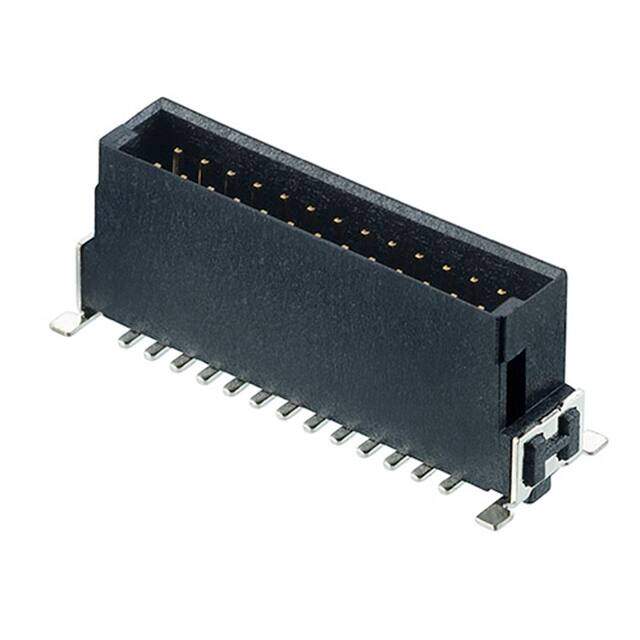

M55-7012642R
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Connector, Header, 26POS, 2ROW, 1.27MM
PDF
/
Buying Options
Total Price: USD $1.62
Unit Price: USD $1.6192
≥1 USD $1.6192
≥10 USD $1.408
≥100 USD $1.258048
Inventory: 543
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Stack Height (Mating) 9.5mm 12.3mm 16.9mm
Contact Finish Thickness - Post 100.0μin 2.54μm
Contact Finish Thickness - Mating 1.00μin 0.025μm
Technical
UL Flammability Code 94V-0
Contact Length - Mating 0.157 4.00mm
Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.050 (1.27mm)
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.325 8.25mm
Total Number of Contacts 26
Current Rating (Amps) 1.2A
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Latch Lock
Number of Rows 2
Applications Automotive, General Purpose, Industrial
Number of Positions 26
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide, Pick and Place, Solder Retention
Series Archer Kontrol
Published 2018
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Rectangular
Mounting Type Surface Mount
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 15 Weeks
