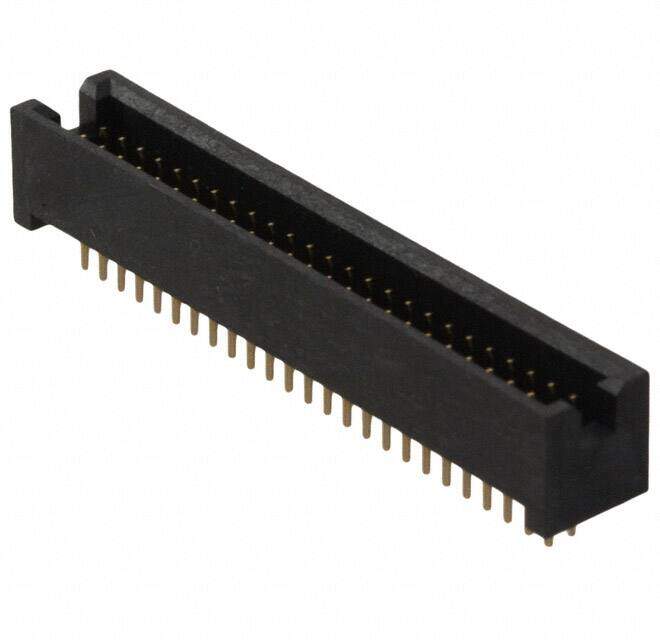

M50-4702545 image
Favorite
M50-4702545 image
Favorite

M50-4702545

Harwin Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER VERT 50POS 1.27MM
PDF
/
Inventory: 6334
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0

Dimensions

Stack Height (Mating) 6mm
Length - Termination 0.091 inch

Technical

Durability 100 Cycles
Mating Contact Pitch 0.05 inch
Insulation Resistance 1000000000Ohm
UL Flammability Code 94V-0
Mating Information MULTIPLE MATING PARTS AVAILABLE
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.091 2.30mm
Row Spacing - Mating 0.050 (1.27mm)
Body Length or Diameter 4 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Current Rating 1A
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.224 5.69mm
Current Rating (Amps) 1A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Additional Feature ROHS COMPLIANT
Voltage - Rated 500V
Gender Male
Number of Rows 2
Number of Positions 50
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e4
Series Archer M50
Published 2009
Packaging Tube
Operating Temperature -40°C~105°C

Physical

Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
