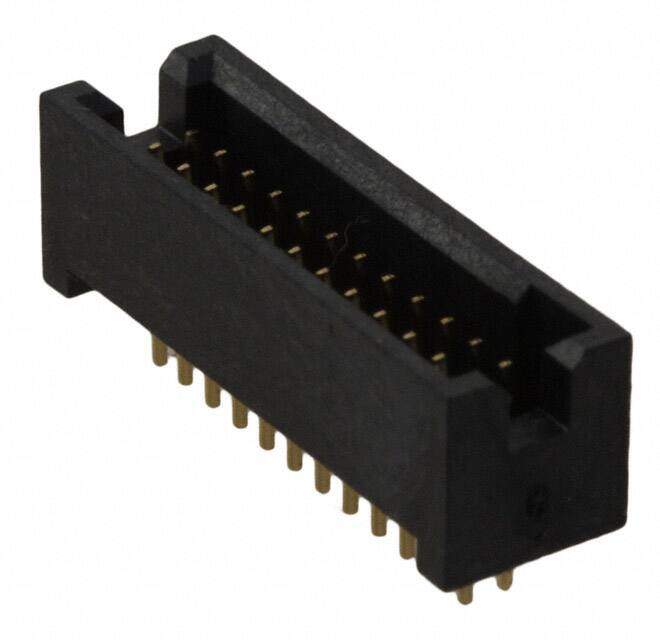

M50-4701245
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 24POS 1.27MM
PDF
/
Inventory: 7379
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Weight 693.004093mg
Technical
Operating Temperature -40°C~105°C
Packaging Tube
Published 2009
Series Archer M50
JESD-609 Code e4
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 24
Number of Rows 2
Gender Male
Voltage - Rated 500V
Additional Feature ROHS COMPLIANT
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 1A per Contact
Insulation Height 0.224 5.69mm
Style Board to Board
Number of Positions Loaded All
Current Rating 1A
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.050 (1.27mm)
Contact Length - Post 0.091 2.30mm
Shrouding Shrouded - 4 Wall
Mating Information MULTIPLE MATING PARTS AVAILABLE
UL Flammability Code 94V-0
Insulation Resistance 1000000000Ohm
Mating Contact Pitch 0.05 inch
Durability 100 Cycles
Dimensions
Length - Termination 0.091 inch
Stack Height (Mating) 6mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
