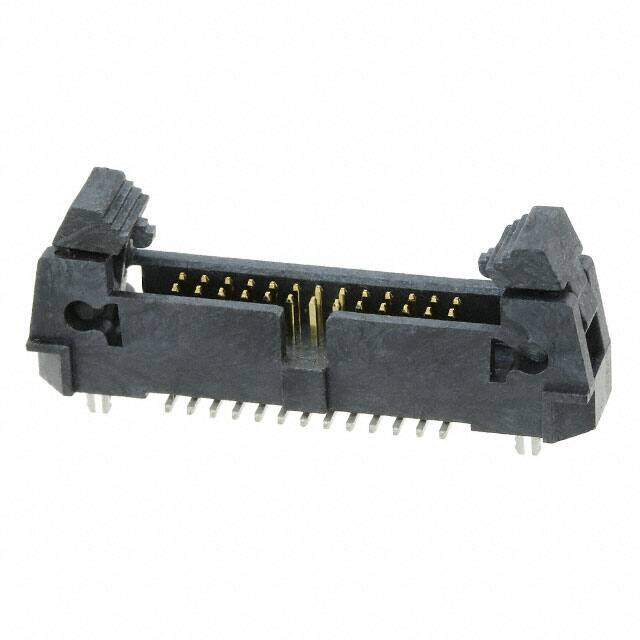

M50-3651342R
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Wire-To-Board Connector, Ejector, M50 Series, Surface Mount, Header, 26, 1.27 Mm Rohs Compliant: Yes
PDF
/
Buying Options
Total Price: USD $2.61
Unit Price: USD $2.6136
≥1 USD $2.6136
≥10 USD $2.3716
≥100 USD $2.089296
Inventory: 6145
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Brass
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP), Glass Filled
Housing Material Polymer
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Published 2012
Series Archer M50
JESD-609 Code e3
Feature Board Lock, Keying Slot, Pick and Place
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 26
Number of Rows 2
HTS Code 8536.69.40.51
Fastening Type Latch Lock/Eject Hooks
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 1.75A per Contact
Total Number of Contacts 26
Insulation Height 0.325 8.25mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 1.75A
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Row Spacing - Mating 0.050 (1.27mm)
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Contact Length - Mating 0.120 3.05mm
Contact Gender Male
UL Flammability Code 94V-0
Lead Length 4.09mm
Insulation Resistance 5GOhm
Insulation Insulated
Mating Post Length 3.05mm
Dimensions
Height 11.3mm
Length 14.48mm
Contact Finish Thickness - Mating Flash
Contact Finish Thickness - Post 100.0μin 2.54μm
Stack Height (Mating) 11.85mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
