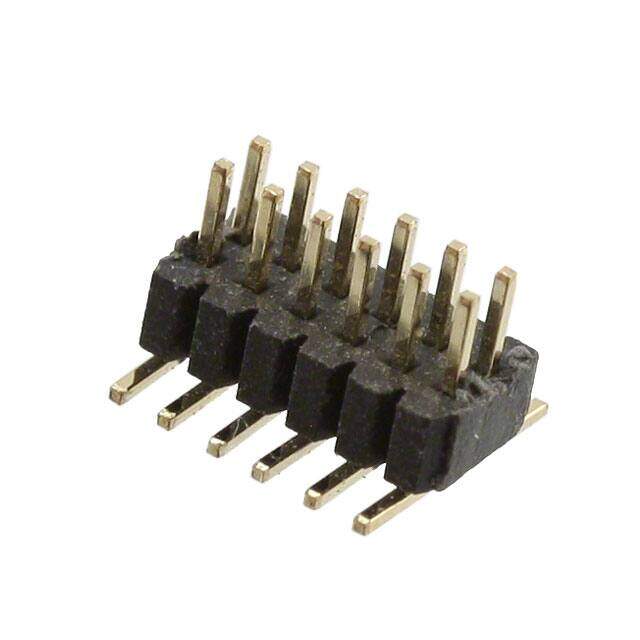

M40-3200645R
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 12POS 1MM DL AU SMD
PDF
/
Buying Options
Total Price: USD $2.09
Unit Price: USD $2.0856
≥1 USD $2.0856
≥10 USD $1.81544
≥100 USD $1.621928
Inventory: 378
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Brass
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Polyamide (PA6T), Nylon 6T, Glass Filled
Housing Material Thermoplastic
Technical
Operating Temperature -40°C~105°C
Packaging Tape & Reel (TR)
Published 2011
Series M40
JESD-609 Code e4
Feature Board Guide, Pick and Place
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 12
Number of Rows 2
Additional Feature ROHS COMPLIANT
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 1A
Total Number of Contacts 12
Orientation Straight
Terminal Pitch 1mm
Depth 3.2mm
Insulation Height 0.059 1.50mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.039 1.00mm
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.039 (1.00mm)
Shrouding Unshrouded
Number Of PCB Rows 2
Contact Length - Mating 0.071 1.80mm
PCB Contact Pattern RECTANGULAR
Contact Gender Male
UL Flammability Code 94V-0
Housing Color Black
Contact Resistance 30mOhm
Insulation Resistance 1000000000Ohm
Mating Contact Pitch 0.039 inch
Dielectric Withstanding Voltage 500VAC V
PCB Contact Row Spacing 3.6068 mm
Durability 300 Cycles
Dimensions
Length 6mm
Contact Finish Thickness - Mating Flash
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
