M22-5331005
RoHS
RoHS compliant
RoHS compliantPackage SIL
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

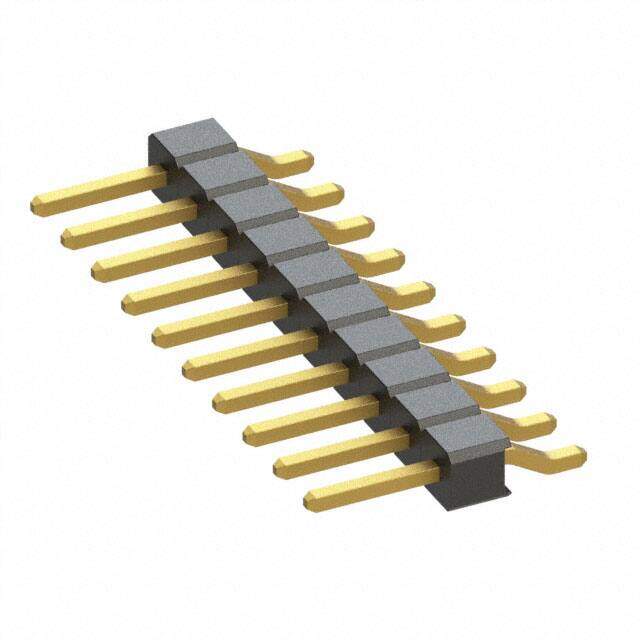

Headers & Wire Housings 10 PIN SIL HORIZONTL GOLD PIN HEADER
PDF
/
Inventory: 1865
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Brass
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Package / Case SIL
Contact Shape Square
Insulation Material Polyamide (PA6T), Nylon 6T
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2013
Series M22
JESD-609 Code e4
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Cuttable
Number of Positions 10
Number of Rows 1
Gender Male
Additional Feature ROHS COMPLIANT
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 2A per Contact
Total Number of Contacts 10
Insulation Height 0.079 2.00mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 0.787 inch
Shrouding Unshrouded
Number Of PCB Rows 1
Lead Pitch 2mm
Contact Length - Mating 0.165 4.20mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.079 inch
UL Flammability Code 94V-0
Body Depth 0.079 inch
Contact Resistance 20mOhm
Insulation Resistance 5000000000Ohm
Mating Contact Pitch 0.079 inch
Dielectric Withstanding Voltage 500VAC V
Dimensions
Contact Finish Thickness - Mating Flash
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
