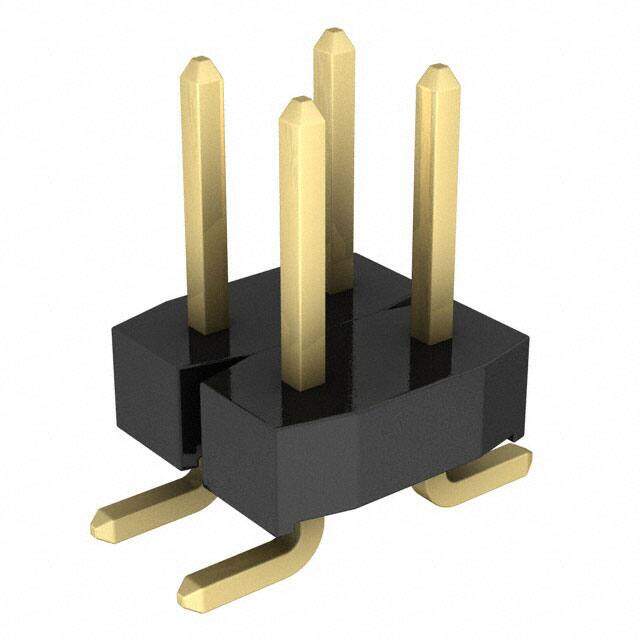

M22-5320205
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER 2MM SMD AU 4POS
PDF
/
Buying Options
Total Price: USD $0.66
Unit Price: USD $0.66
≥1 USD $0.66
≥10 USD $0.57288
≥100 USD $0.472208
≥500 USD $0.410626
≥1000 USD $0.338765
≥3000 USD $0.297704
Inventory: 984
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Phosphor Bronze
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Polyamide (PA6T), Nylon 6T
Body Material Nylon
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2009
Series M22
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header, Cuttable
Number of Positions 4
Number of Rows 2
Gender Male
Additional Feature ROHS COMPLIANT
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 1A per Contact
Total Number of Contacts 4
Orientation Straight
Depth 5mm
Insulation Height 0.059 1.50mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.079 (2.00mm)
Shrouding Unshrouded
Number Of PCB Rows 2
Lead Pitch 2mm
Contact Length - Mating 0.138 3.50mm
PCB Contact Pattern RECTANGULAR
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.157 inch
Housing Color Black
Contact Resistance 20mOhm
Insulation Resistance 100000000Ohm
Mating Contact Pitch 0.079 inch
Max Current Rating 1A
Dielectric Withstanding Voltage 650VAC V
Durability 300 Cycles
Dimensions
Length 4mm
Stack Height (Mating) 4.6mm 6.8mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
