M22-2581405
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

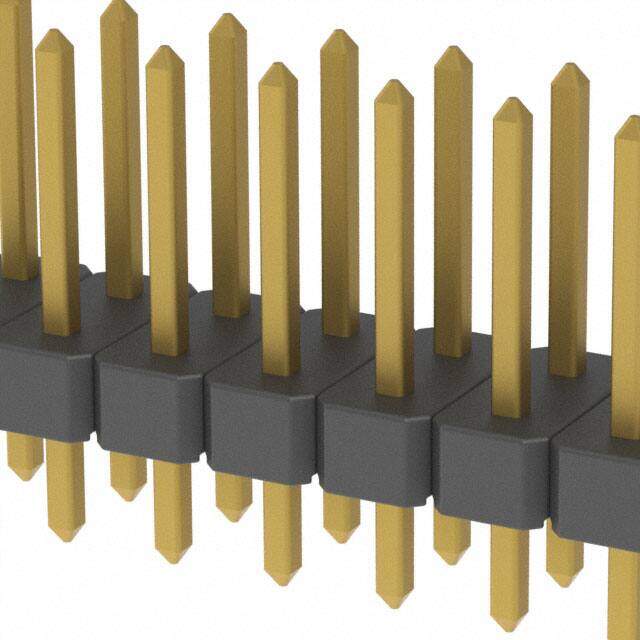

Headers & Wire Housings 14+14 DIL BOTTOM ENT VERT GOLD PIN HEADER
PDF
/
Inventory: 8056
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length 28mm
Technical
Durability 300 Cycles
Max Current Rating 1A
Mating Contact Pitch 0.079 inch
Insulation Resistance 100000000Ohm
Contact Resistance 15mOhm
Overall Contact Length 0.346 8.80mm
Housing Color Black
UL Flammability Code 94V-0
Body Breadth 0.157 inch
Mating Information MULTIPLE MATING PARTS AVAILABLE
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.197 5.00mm
Number Of PCB Rows 2
Shrouding Unshrouded
Contact Length - Post 0.091 2.30mm
Row Spacing - Mating 0.079 (2.00mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.079 2.00mm
Current Rating 1A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.059 1.50mm
Depth 4mm
Orientation Straight
Current Rating (Amps) 1A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Additional Feature ROHS COMPLIANT
Voltage - Rated 650V
Gender Male
Number of Rows 2
Number of Positions 28
Connector Type Header, Cuttable
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e4
Series M22
Published 2015
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Housing Material Nylon
Insulation Material Polyamide (PA6T), Nylon 6T
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
