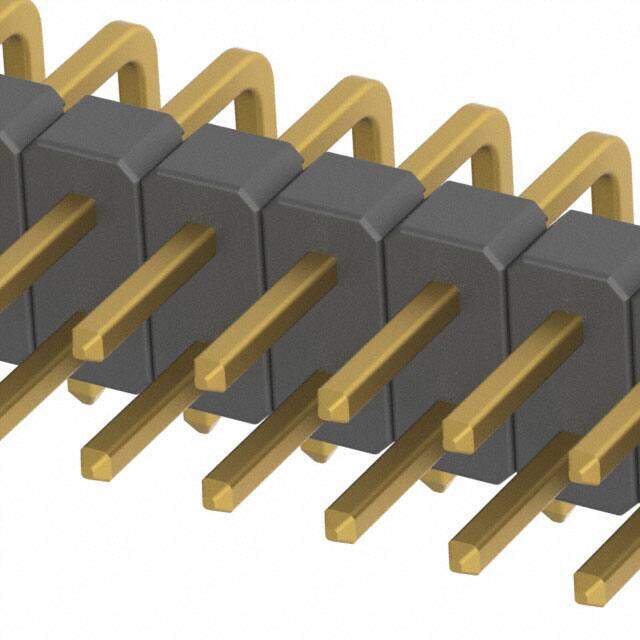

M22-2541405 image
Favorite
M22-2541405 image
Favorite

M22-2541405

Harwin Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Headers & Wire Housings 14+14 DIL HORIZONTL GOLD PIN HEADER
PDF
/
Inventory: 8860
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Contact Material Phosphor Bronze
Contact Plating Gold
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA6T), Nylon 6T
Housing Material Nylon

Technical

Operating Temperature -40°C~105°C
Packaging Bulk
Published 2013
Series M22
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Cuttable
Number of Positions 28
Color Black
Number of Rows 2
Gender Male
Voltage - Rated 650V
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Current Rating (Amps) 2A
Pitch 2.0066mm
Insulation Height 0.157 4.00mm
Style Board to Board
Number of Positions Loaded All
Current Rating 1A
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Row Spacing - Mating 0.079 (2.00mm)
Contact Length - Post 0.094 2.40mm
Shrouding Unshrouded
Number of Contacts 28
Contact Length - Mating 0.138 3.50mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
