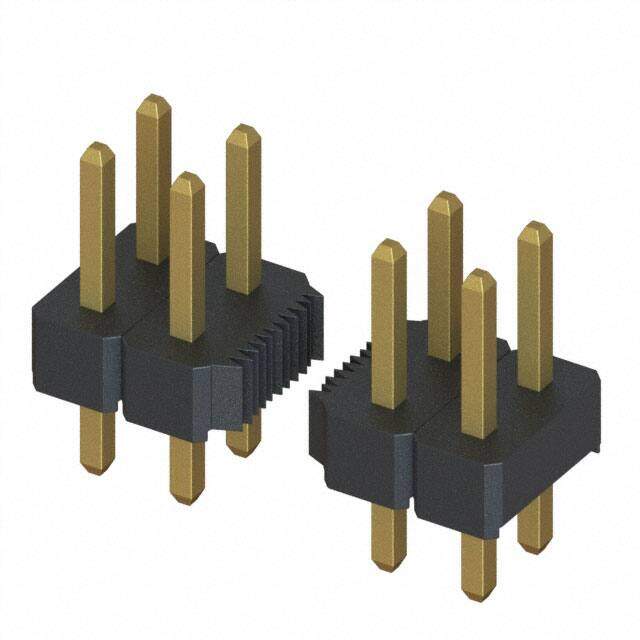

M22-2522505
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings 25+25 DIL VERTICAL GOLD PIN HEADER
PDF
/
Inventory: 4171
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA6T), Nylon 6T
Housing Material Nylon
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2013
Series M22
JESD-609 Code e4
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header, Cuttable
Number of Positions 50
Number of Rows 2
Gender Male
Voltage - Rated 650V
Additional Feature ROHS COMPLIANT
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 1A per Contact
Orientation Straight
Depth 4mm
Insulation Height 0.059 1.50mm
Style Board to Board
Number of Positions Loaded All
Current Rating 1A
Pitch - Mating 0.079 2.00mm
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.079 (2.00mm)
Contact Length - Post 0.091 2.30mm
Shrouding Unshrouded
Number Of PCB Rows 2
Contact Length - Mating 0.138 3.50mm
PCB Contact Pattern RECTANGULAR
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.157 inch
UL Flammability Code 94V-0
Housing Color Black
Overall Contact Length 0.287 7.30mm
Contact Resistance 30mOhm
Insulation Resistance 100000000Ohm
Mating Contact Pitch 0.079 inch
Max Current Rating 1A
Durability 300 Cycles
Dimensions
Length 50mm
Stack Height (Mating) 3.8mm 5.9mm 8.6mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
