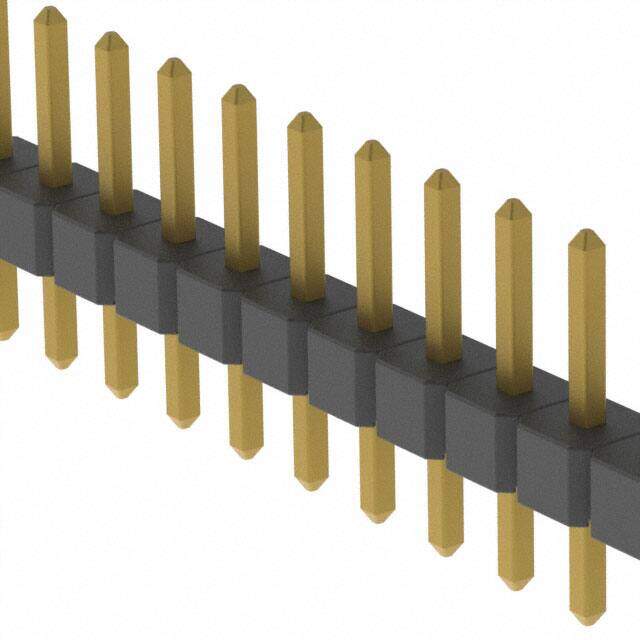

M22-2512105
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings 21 PIN SIL VERTICAL GOLD PIN HEADER
PDF
/
Inventory: 2973
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Phosphor Bronze
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA6T), Nylon 6T
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2013
Series M22
JESD-609 Code e4
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Cuttable
Number of Positions 21
Number of Rows 1
Additional Feature ROHS COMPLIANT
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 1A per Contact
Terminal Pitch 2mm
Insulation Height 0.059 1.50mm
Style Board to Board
Number of Positions Loaded All
Pitch - Mating 0.079 2.00mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Contact Length - Post 0.091 2.30mm
Shrouding Unshrouded
Number Of PCB Rows 1
Contact Length - Mating 0.138 3.50mm
PCB Contact Pattern RECTANGULAR
Mating Information MULTIPLE MATING PARTS AVAILABLE
Body Breadth 0.079 inch
UL Flammability Code 94V-0
Body Depth 0.059 inch
Overall Contact Length 0.287 7.30mm
Contact Resistance 20mOhm
Mating Contact Pitch 0.079 inch
Dielectric Withstanding Voltage 650VAC V
Durability 300 Cycles
Dimensions
Stack Height (Mating) 5.9mm 8.6mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
