M22-2041005
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

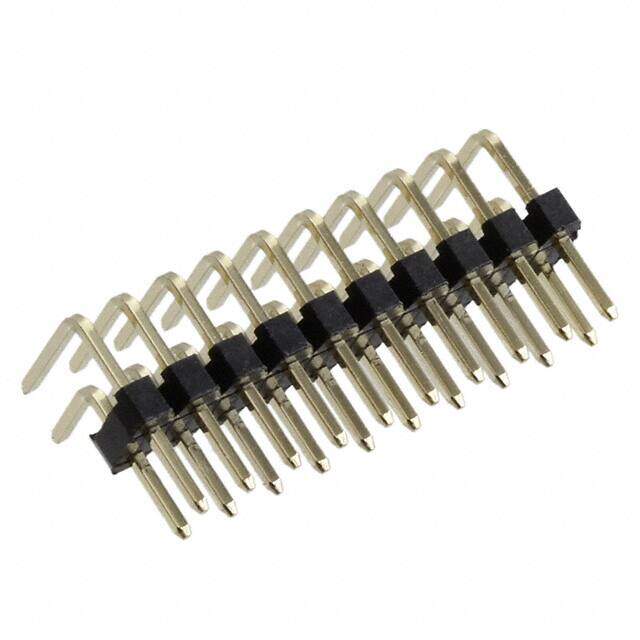

HEADER, RIGHT ANGLE, 2ROW, 10WAY
PDF
/
Buying Options
Total Price: USD $1.31
Unit Price: USD $1.3112
≥1 USD $1.3112
≥10 USD $1.14488
≥100 USD $0.925408
≥500 USD $0.85235
≥1000 USD $0.730594
≥3000 USD $0.647794
Inventory: 1180
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 13 Weeks
Physical
Contact Material Phosphor Bronze
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polyamide (PA6T), Nylon 6T
Housing Material Nylon
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2009
Series M22
JESD-609 Code e4
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Cuttable
Number of Positions 20
Number of Rows 2
Gender Male
Additional Feature ROHS COMPLIANT
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Voltage - Rated DC 250V
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 1A per Contact
Orientation Right Angle
Depth 8.5mm
Insulation Height 0.157 4.00mm
Style Board to Board
Number of Positions Loaded All
Current Rating 1A
Pitch - Mating 0.079 2.00mm
Number of Conductors ONE
Reference Standard UL
Voltage - Rated AC 250V
Reliability COMMERCIAL
Row Spacing - Mating 0.079 (2.00mm)
Contact Length - Post 0.118 3.00mm
Shrouding Unshrouded
Number Of PCB Rows 2
Lead Pitch 2mm
Number of Contacts 10
Contact Length - Mating 0.138 3.50mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.157 inch
UL Flammability Code 94V-0
Housing Color Black
Working Voltage 250V
Contact Resistance 20mOhm
Insulation Resistance 10GOhm
Mating Contact Pitch 0.079 inch
Max Current Rating 1A
Dielectric Withstanding Voltage 650VAC V
Durability 300 Cycles
Dimensions
Length 20mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Flammability Rating UL94 V-0
