M22-2030305
RoHS
RoHS compliant
RoHS compliantPackage SIL
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

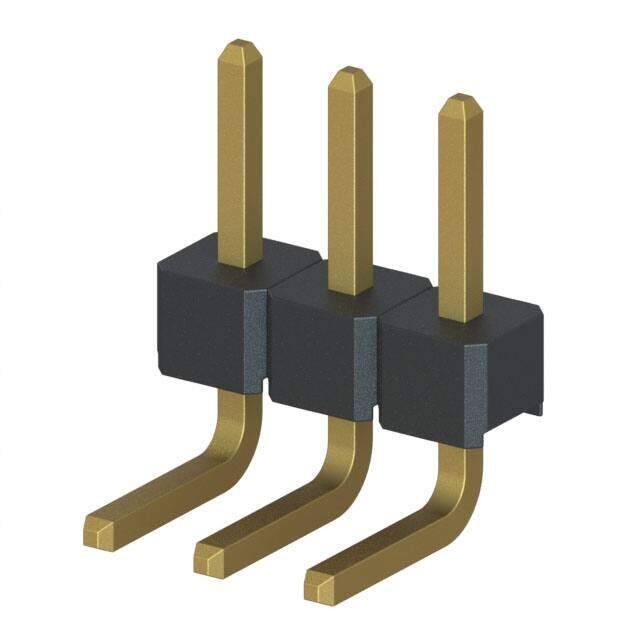

HARWIN - M22-2030305 - HEADER, RIGHT ANGLE, 1ROW, 3WAY
PDF
/
Buying Options
Total Price: USD $0.28
Unit Price: USD $0.2816
≥1 USD $0.2816
≥10 USD $0.24112
≥100 USD $0.187264
≥500 USD $0.160512
≥1000 USD $0.13376
≥3000 USD $0.114655
Inventory: 2317
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Length 6mm
Technical
Dielectric Withstanding Voltage 650VAC V
Max Current Rating 1A
Mating Contact Pitch 0.079 inch
Insulation Resistance 10GOhm
Contact Resistance 20mOhm
Working Voltage 250V
Housing Color Black
UL Flammability Code 94V-0
Contact Gender Male
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.138 3.50mm
Lead Pitch 2mm
Number Of PCB Rows 1
Shrouding Unshrouded
Contact Length - Post 0.118 3.00mm
Reliability COMMERCIAL
Voltage - Rated AC 250V
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.079 2.00mm
Current Rating 1A
Reach Compliance Code not_compliant
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.079 2.00mm
Depth 6.5mm
Orientation Right Angle
Current Rating (Amps) 1A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Voltage - Rated DC 250V
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Additional Feature ROHS COMPLIANT
Number of Rows 1
Number of Positions 3
Connector Type Header, Cuttable
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series M22
Published 2006
Packaging Bulk
Operating Temperature -55°C~105°C
Physical
Housing Material Nylon
Insulation Material Polyamide (PA6T), Nylon 6T
Contact Shape Square
Package / Case SIL
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 13 Weeks
Alternative Model
