M22-2020346
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

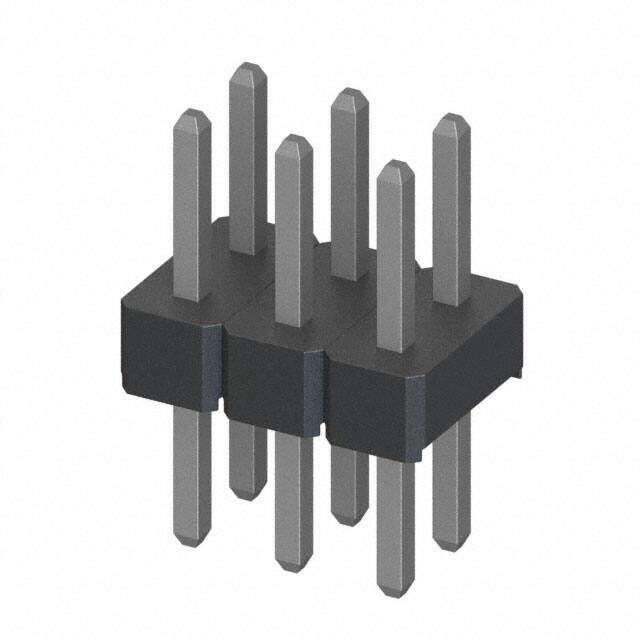

Headers & Wire Housings 3+3 DIL PIN HDR TIN VERTICAL
PDF
/
Inventory: 3915
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Stack Height (Mating) 3.8mm 5.9mm 8.6mm
Length - Termination 0.134 inch
Technical
Durability 50 Cycles
Mating Contact Pitch 0.079 inch
Insulation Resistance 100000000Ohm
Contact Resistance 30mOhm
Overall Contact Length 0.331 8.40mm
Body Depth 0.059 inch
UL Flammability Code 94V-0
Body Breadth 0.157 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.138 3.50mm
Number Of PCB Rows 2
Shrouding Unshrouded
Contact Length - Post 0.134 3.40mm
Row Spacing - Mating 0.079 (2.00mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.079 2.00mm
Number of Positions Loaded All
Style Board to Board
Insulation Height 0.059 1.50mm
Current Rating (Amps) 1A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Additional Feature ROHS COMPLIANT
Number of Rows 2
Number of Positions 6
Connector Type Header, Cuttable
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e3
Series M22
Published 2013
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Insulation Material Polyamide (PA6T), Nylon 6T
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 13 Weeks
Alternative Model
