M20-9990545
RoHS
RoHS compliant
RoHS compliantPackage SIL
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

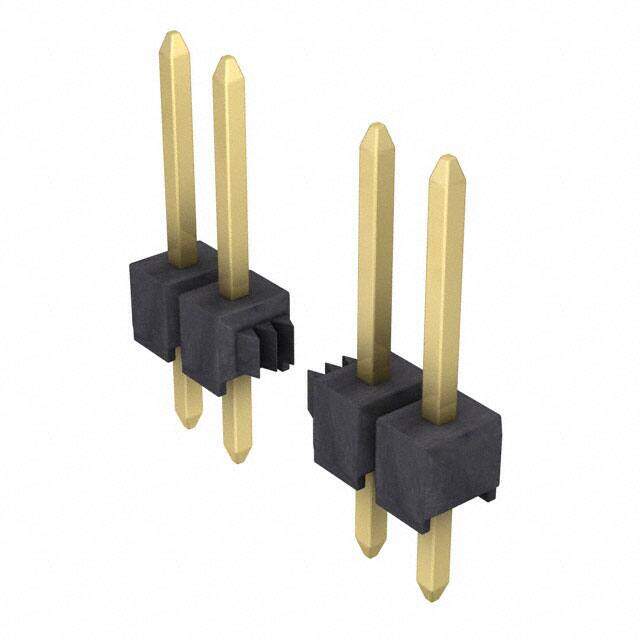

Board-To-Board Connector, M20 Series, Through Hole, Header, 5, 2.54 mm, Gold Plated Contacts
PDF
/
Buying Options
Total Price: USD $0.26
Unit Price: USD $0.264
≥1 USD $0.264
≥10 USD $0.2244
≥100 USD $0.17424
≥500 USD $0.149318
≥1000 USD $0.124432
≥3000 USD $0.106656
Inventory: 2908
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Radiation Hardening No
Material Flammability Rating UL94 V-0
Dimensions
Stack Height (Mating) 10.04mm 10.64mm 11.04mm 16.54mm
Width 12.7mm
Length 12.7mm
Height 3.048mm
Technical
Durability 300 Cycles
Max Current Rating 3A
Insulation Resistance 10GOhm
Contact Resistance 25mOhm
Overall Contact Length 0.460 11.68mm
Housing Color Black
UL Flammability Code 94V-0
Contact Length - Mating 0.240 6.10mm
Lead Pitch 2.54mm
Number Of PCB Rows 1
Shrouding Unshrouded
Contact Length - Post 0.118 3.00mm
Reliability COMMERCIAL
Voltage - Rated AC 750V
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.100 2.54mm
Depth 2.54mm
Orientation Straight
Current Rating (Amps) 3A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Voltage - Rated DC 750V
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Additional Feature ROHS COMPLIANT
Gender Male
Number of Rows 1
Number of Positions 5
Connector Type Header, Cuttable
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
JESD-609 Code e4
Series M20
Published 2007
Packaging Bulk
Operating Temperature -40°C~105°C
Physical
Weight 45.359237g
Housing Material Nylon
Insulation Material Polyamide (PA6T), Nylon 6T
Contact Shape Square
Package / Case SIL
Mounting Type Through Hole
Mount Through Hole
Contact Material Brass
Supply Chain
Factory Lead Time 13 Weeks
Alternative Model
