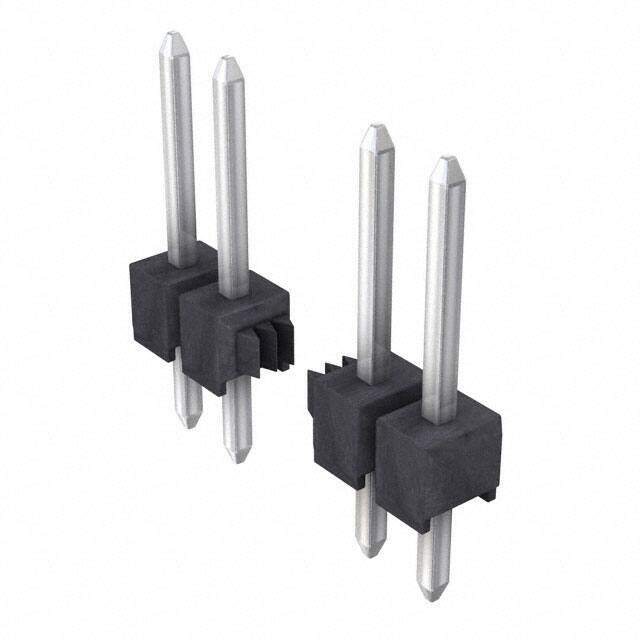

M20-9771546 image
Favorite
M20-9771546 image
Favorite

M20-9771546

Harwin Inc.
RoHS
RoHS RoHS compliant
Package SIL
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description CONN HEADER VERT 15POS 2.54MM
PDF
/
Inventory: 4747
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Supply Chain

Factory Lead Time 6 Weeks

Physical

Contact Material Brass
Mount Through Hole
Mounting Type Through Hole
Package / Case SIL
Contact Shape Square
Insulation Material Polyamide (PA6T), Nylon 6T
Housing Material Nylon
Weight 854.993268mg

Technical

Operating Temperature -40°C~105°C
Packaging Bulk
Published 2006
Series M20
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header, Cuttable
Number of Positions 15
Number of Rows 1
Voltage - Rated 750V
Additional Feature ROHS COMPLIANT
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 3A per Contact
Terminal Pitch 2.54mm
Insulation Height 0.100 2.54mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Contact Length - Post 0.122 3.10mm
Shrouding Unshrouded
Number Of PCB Rows 1
Contact Length - Mating 0.228 5.80mm
PCB Contact Pattern RECTANGULAR
UL Flammability Code 94V-0
Overall Contact Length 0.452 11.48mm
Contact Resistance 30mOhm
Dielectric Withstanding Voltage 750VAC V
Durability 50 Cycles

Dimensions

Stack Height (Mating) 10.04mm 10.64mm 11.04mm 16.54mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
