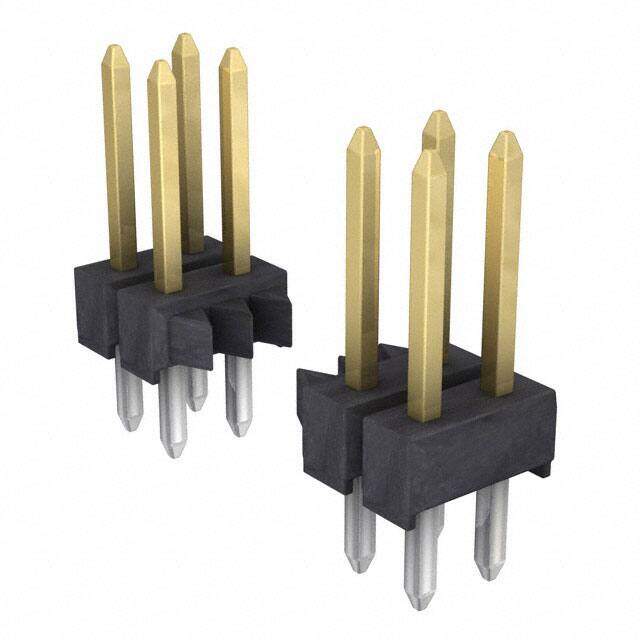

M20-9763542

Harwin Inc.
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Headers & Wire Housings 35+35 DIL VERTICAL PIN HEADER GOLD+TIN
PDF
/
Inventory: 2797
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Physical

Contact Material Brass
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polyamide (PA6T), Nylon 6T
Housing Material Nylon

Technical

Operating Temperature -40°C~105°C
Packaging Bulk
Published 2006
Series M20
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header, Cuttable
Number of Positions 70
Number of Rows 2
Voltage - Rated 750V
Additional Feature ROHS COMPLIANT
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 3A per Contact
Insulation Height 0.100 2.54mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 3.5 inch
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.122 3.10mm
Shrouding Unshrouded
Number Of PCB Rows 2
Contact Finish - Post Tin
Contact Length - Mating 0.228 5.80mm
PCB Contact Pattern RECTANGULAR
Body Depth 0.1 inch
Overall Contact Length 0.452 11.48mm
Insulation Resistance 1000000000Ohm
Mating Contact Pitch 0.1 inch
Dielectric Withstanding Voltage 750VAC V
Durability 300 Cycles

Dimensions

Stack Height (Mating) 9.94mm 10.64mm 11.04mm 16.54mm

Compliance

Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant

Alternative Model

179963-1

179963-1

TE Connectivity / AMP
