M20-9760242
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

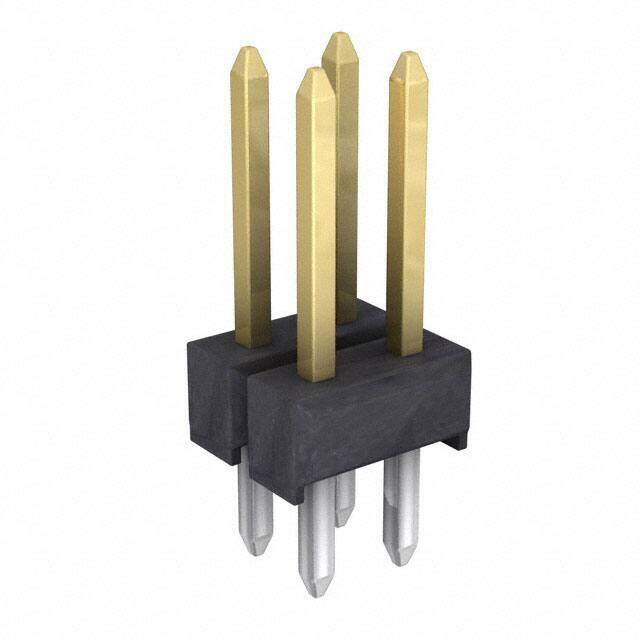

Headers & Wire Housings 02+02 DIL VERTICAL PIN HEADER GOLD+TIN
PDF
/
Inventory: 1235
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2006
Series M20
JESD-609 Code e3
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Cuttable
Number of Positions 4
Number of Rows 2
Gender Male
Voltage - Rated 750V
Additional Feature ROHS COMPLIANT
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 3A per Contact
Orientation Straight
Depth 5.08mm
Insulation Height 0.100 2.54mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 3A
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.122 3.10mm
Shrouding Unshrouded
Number Of PCB Rows 2
Contact Finish - Post Tin
Contact Length - Mating 0.228 5.80mm
PCB Contact Pattern RECTANGULAR
Housing Color Black
Overall Contact Length 0.452 11.48mm
Contact Resistance 25mOhm
Insulation Resistance 1000000000Ohm
Mating Contact Pitch 0.1 inch
Max Current Rating 3A
Dielectric Withstanding Voltage 750VAC V
Durability 300 Cycles
Physical
Housing Material Nylon
Insulation Material Polyamide (PA6T), Nylon 6T
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Brass
Supply Chain
Factory Lead Time 7 Weeks
Dimensions
Length 5.08mm
Stack Height (Mating) 9.94mm 10.64mm 11.04mm 16.54mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
