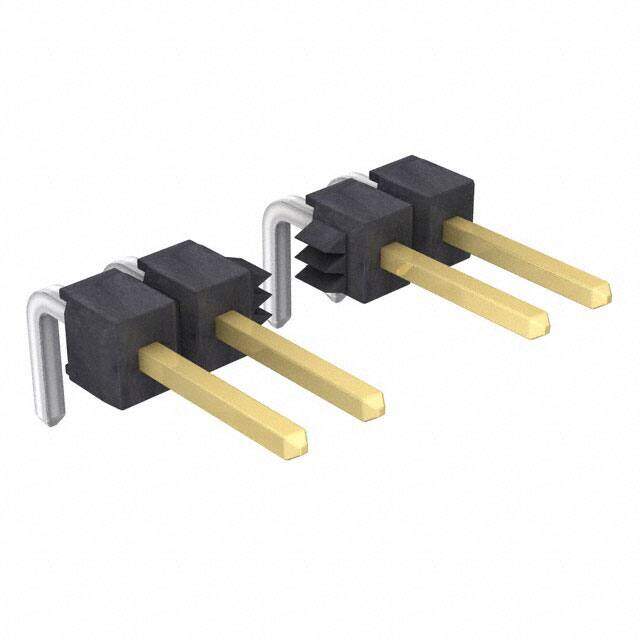

M20-9752242

Harwin Inc.
RoHS
RoHS RoHS compliant
Package SIL
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Headers & Wire Housings 22 SIL HORIZONTAL PIN HEADER GOLD+TIN
PDF
/
Inventory: 2884
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Technical

Durability 300 Cycles
Dielectric Withstanding Voltage 750VAC V
Contact Resistance 25mOhm
UL Flammability Code 94V-0
Contact Length - Mating 0.228 5.80mm
Contact Finish - Post Tin
Number Of PCB Rows 1
Shrouding Unshrouded
Contact Length - Post 0.118 3.00mm
Body Length or Diameter 2.2 inch
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Black
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.100 2.54mm
Terminal Pitch 2.54mm
Current Rating (Amps) 3A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Gold
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Additional Feature ROHS COMPLIANT
Voltage - Rated 750V
Number of Rows 1
Number of Positions 22
Connector Type Header, Cuttable
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Series M20
Published 2009
Packaging Bulk
Operating Temperature -40°C~105°C

Physical

Housing Material Nylon
Insulation Material Polyamide (PA6T), Nylon 6T
Contact Shape Square
Package / Case SIL
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Plating Gold, Tin
Contact Material Brass

Supply Chain

Factory Lead Time 12 Weeks
