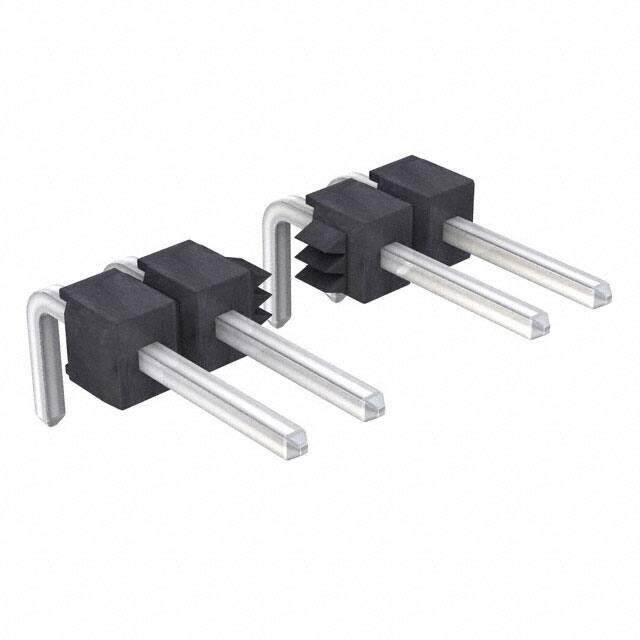

M20-9751146

Harwin Inc.
RoHS
RoHS RoHS compliant
Package SIL
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Headers & Wire Housings 11 SIL HORIZONTAL PIN HEADER TIN
PDF
/
Inventory: 1873
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and contact information to get a quote.
Quotation Consultation
Is there anything else we can help you solve?
Inquiry

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Length 27.94mm

Technical

Durability 50 Cycles
Dielectric Withstanding Voltage 750VAC V
Max Current Rating 3A
Contact Resistance 30mOhm
Housing Color Black
Contact Length - Mating 0.228 5.80mm
Number Of PCB Rows 1
Shrouding Unshrouded
Contact Length - Post 0.118 3.00mm
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Pitch - Mating 0.100 2.54mm
Current Rating 3A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.100 2.54mm
Depth 9.7mm
Terminal Pitch 2.54mm
Orientation Right Angle
Current Rating (Amps) 3A per Contact
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating Tin
Subcategory Headers and Edge Type Connectors
Fastening Type Push-Pull
Additional Feature ROHS COMPLIANT
Voltage - Rated 750V
Number of Rows 1
Number of Positions 11
Connector Type Header, Cuttable
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Obsolete
Pbfree Code yes
JESD-609 Code e3
Series M20
Published 2009
Packaging Bulk
Operating Temperature -40°C~105°C

Physical

Housing Material Nylon
Insulation Material Polyamide (PA6T), Nylon 6T
Contact Shape Square
Package / Case SIL
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Brass

Alternative Model

FSI-120-10-L-D-E-AD-P-TR

FSI-120-10-L-D-E-AD-P-TR

Samtec Inc.
