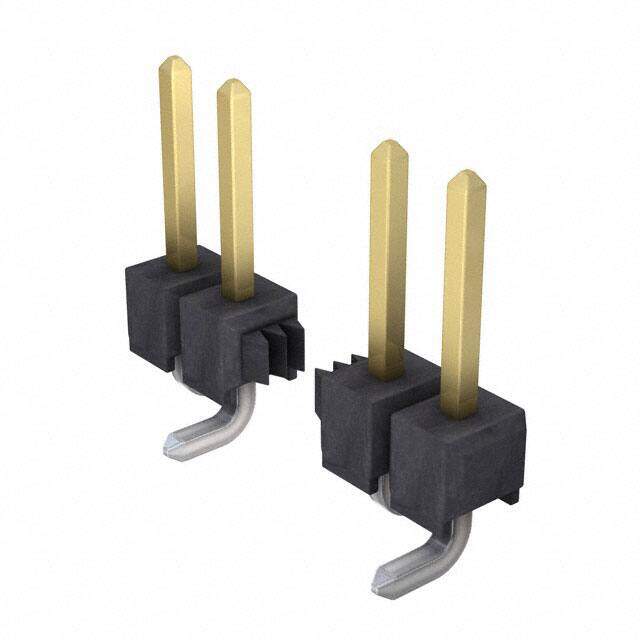

M20-8771542P
RoHS
RoHS compliant
RoHS compliantPackage SIL
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings 15 SIL VERTICAL SMT HEADER GOLD+TIN
PDF
/
Inventory: 9919
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Physical
Contact Material Brass
Mount Surface Mount
Mounting Type Surface Mount
Package / Case SIL
Contact Shape Square
Insulation Material Polyamide (PA6T), Nylon 6T
Technical
Operating Temperature -40°C~105°C
Packaging Tube
Published 2005
Series M20
JESD-609 Code e3
Feature Pick and Place
Pbfree Code yes
Part Status Obsolete
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header, Cuttable
Number of Positions 15
Number of Rows 1
Gender Male
Additional Feature ROHS COMPLIANT
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Gold
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 3A per Contact
Total Number of Contacts 15
Insulation Height 0.100 2.54mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Black
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Shrouding Unshrouded
Number Of PCB Rows 2
Lead Pitch 2.54mm
Contact Finish - Post Tin
Contact Length - Mating 0.228 5.80mm
PCB Contact Pattern STAGGERED
Body Breadth 0.098 inch
Contact Resistance 20mOhm
Dielectric Withstanding Voltage 500VAC V
PCB Contact Row Spacing 3.302 mm
Durability 300 Cycles
Dimensions
Stack Height (Mating) 11.63mm 12.23mm 12.63mm 18.13mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
