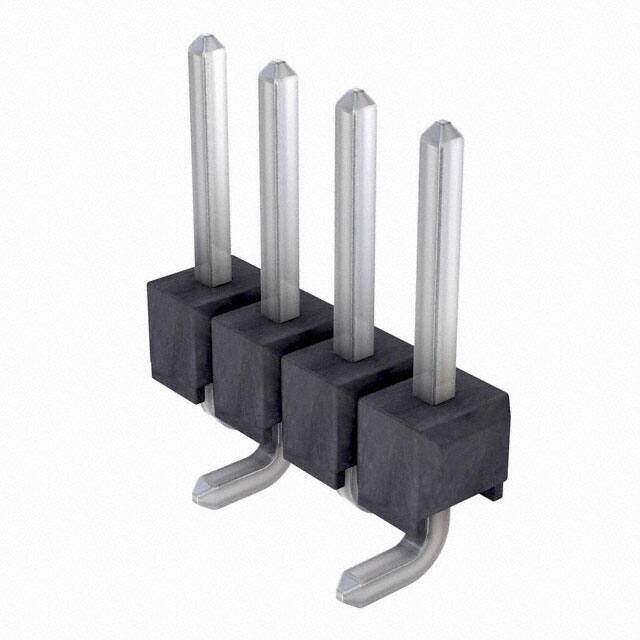

M20-8770446
RoHS
RoHS compliant
RoHS compliantPackage SIL
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings 04 SIL VERTICAL SMT HEADER TIN
PDF
/
Buying Options
Total Price: USD $0.38
Unit Price: USD $0.3784
≥1 USD $0.3784
≥10 USD $0.32208
≥100 USD $0.250448
≥500 USD $0.178869
≥1000 USD $0.153314
≥3000 USD $0.143097
Inventory: 3902
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 12 Weeks
Physical
Contact Material Brass
Mount Surface Mount
Mounting Type Surface Mount
Package / Case SIL
Contact Shape Square
Insulation Material Polyamide (PA6T), Nylon 6T
Housing Material Nylon
Technical
Operating Temperature -40°C~105°C
Packaging Bulk
Published 2005
Series M20
JESD-609 Code e3
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header, Cuttable
Number of Positions 4
Number of Rows 1
Gender Male
Additional Feature ROHS COMPLIANT
Fastening Type Push-Pull
Subcategory Headers and Edge Type Connectors
Contact Finish - Mating Tin
MIL Conformance NO
DIN Conformance NO
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Current Rating (Amps) 3A per Contact
Total Number of Contacts 4
Orientation Straight
Depth 5.08mm
Insulation Height 0.100 2.54mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Shrouding Unshrouded
Number Of PCB Rows 2
Lead Pitch 2.54mm
Contact Length - Mating 0.228 5.80mm
PCB Contact Pattern STAGGERED
Body Breadth 0.098 inch
Housing Color Black
Contact Resistance 30mOhm
Max Current Rating 3A
Dielectric Withstanding Voltage 500VAC V
PCB Contact Row Spacing 3.302 mm
Durability 50 Cycles
Dimensions
Length 10.16mm
Stack Height (Mating) 11.63mm 12.23mm 12.63mm 18.13mm
Compliance
Material Flammability Rating UL94 V-0
Radiation Hardening No
RoHS Status ROHS3 Compliant
