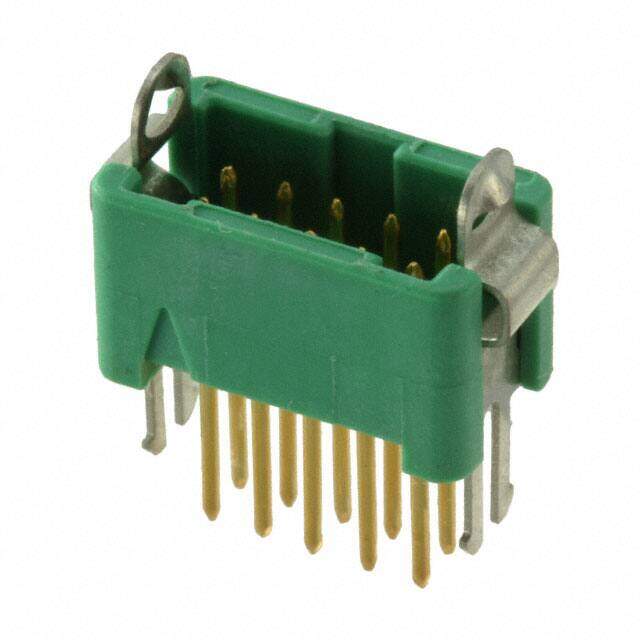

G125-MV21005L2P
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
CONN HEADER VERT 10POS 1.25MM
PDF
/
Buying Options
Total Price: USD $5.58
Unit Price: USD $5.5792
≥1 USD $5.5792
≥10 USD $5.04328
≥100 USD $4.416016
≥500 USD $3.718739
≥1000 USD $3.253897
Inventory: 457
Minimum: 1
-
+
Technical Details
Compliance
Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Stack Height (Mating) 7.25mm 7.35mm 7.7mm
Contact Finish Thickness - Mating 8.00μin 0.203μm
Technical
Insulation Resistance 10GOhm
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.177 4.50mm
Row Spacing - Mating 0.049 (1.25mm)
Insulation Color Green
Pitch - Mating 0.049 1.25mm
Current Rating 2A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.193 4.90mm
Current Rating (Amps) 2A per Contact
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Latch Lock
Voltage - Rated 450V
Number of Rows 2
Number of Positions 10
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Board Lock, Pick and Place
Series Gecko
Published 2013
Packaging Bulk
Operating Temperature -65°C~150°C
Physical
Weight 287.010572mg
Housing Material Polyamide
Insulation Material Polyamide (PA4T), Nylon 4T, Glass Filled, Halogen Free
Contact Shape Circular
Mounting Type Through Hole
Mount Through Hole
Contact Material Phosphor Bronze
Supply Chain
Factory Lead Time 13 Weeks
