15151002601000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

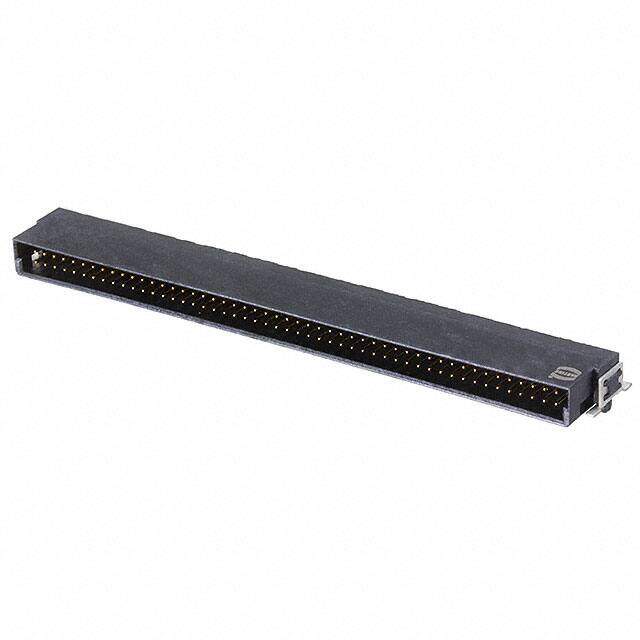

CONN HEADER 100POS SMT R/A GOLD
PDF
/
Buying Options
Total Price: USD $13.02
Unit Price: USD $13.0152
≥1 USD $13.0152
≥10 USD $11.53592
≥100 USD $10.056992
Inventory: 136
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 14 Weeks
Physical
Contact Material Copper Alloy
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -55°C~125°C
Packaging Cut Tape (CT)
Series har-flex?
Feature Board Guide, Solder Retention
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 100
Number of Rows 2
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Orientation Right Angle
Insulation Height 0.167 4.25mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 1A
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Row Spacing - Mating 0.050 (1.27mm)
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
