15150682601000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

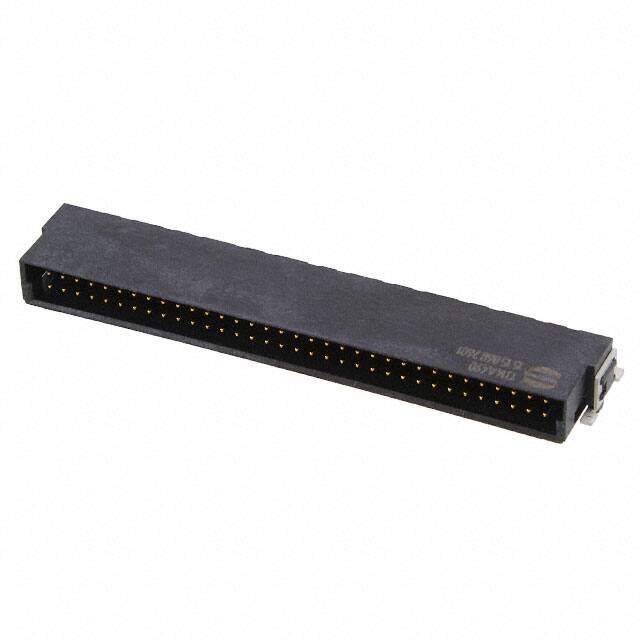

CONN HEADER 68POS SMT R/A GOLD
PDF
/
Buying Options
Total Price: USD $6.55
Unit Price: USD $6.5472
≥1 USD $6.5472
≥10 USD $5.92328
≥100 USD $5.186016
Inventory: 3607
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Technical
Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.050 (1.27mm)
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Current Rating 1A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.167 4.25mm
Orientation Right Angle
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Gender Male
Number of Rows 2
Number of Positions 68
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide, Solder Retention
Series har-flex?
Packaging Cut Tape (CT)
Operating Temperature -55°C~125°C
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount, Right Angle
Mount Surface Mount
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 9 Weeks
