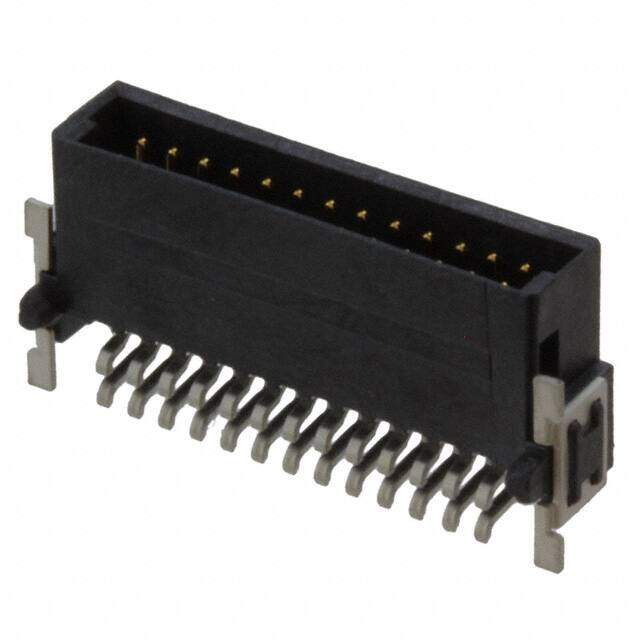

15150262601000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
har-flex? ROHS3Compliant Right Angle Lead Free Connector Header -55C~125C 1A 0.167 4.25mm
PDF
/
Buying Options
Total Price: USD $3.78
Unit Price: USD $3.7752
≥1 USD $3.7752
≥10 USD $3.43112
≥100 USD $3.02324
Inventory: 847
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 9 Weeks
Physical
Contact Material Copper Alloy
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -55°C~125°C
Packaging Cut Tape (CT)
Series har-flex?
Feature Board Guide, Solder Retention
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 26
Number of Rows 2
Gender Male
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Orientation Right Angle
Insulation Height 0.167 4.25mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 1A
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Row Spacing - Mating 0.050 (1.27mm)
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
