15150122401000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

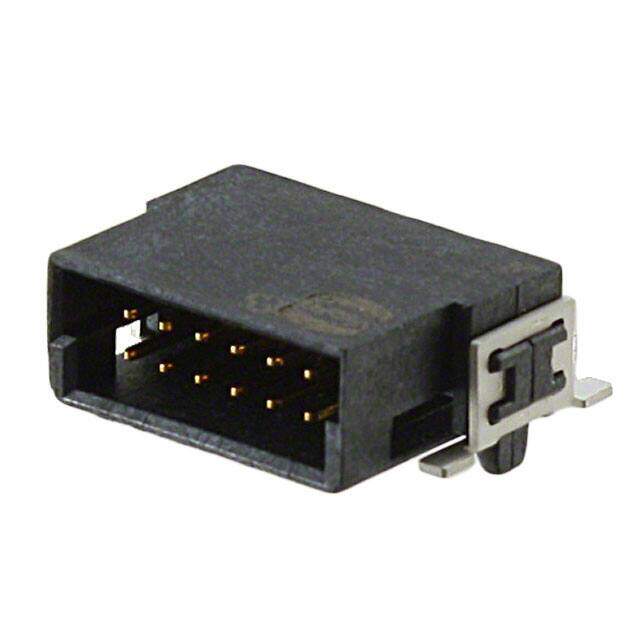

HARTING 15150122401000 CONNECTOR, HEADER, 12POS, 2ROW, 1.27MMNew
PDF
/
Buying Options
Total Price: USD $2.14
Unit Price: USD $2.1384
≥1 USD $2.1384
≥10 USD $1.93864
≥100 USD $1.707992
Inventory: 4278
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Technical
Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.050 (1.27mm)
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.167 4.25mm
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
Number of Rows 2
Number of Positions 12
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) Not Applicable
Part Status Active
Feature Board Guide, Solder Retention
Series har-flex?
Packaging Tape & Reel (TR)
Operating Temperature -55°C~125°C
Physical
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount, Right Angle
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 4 Weeks
