15150062601000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

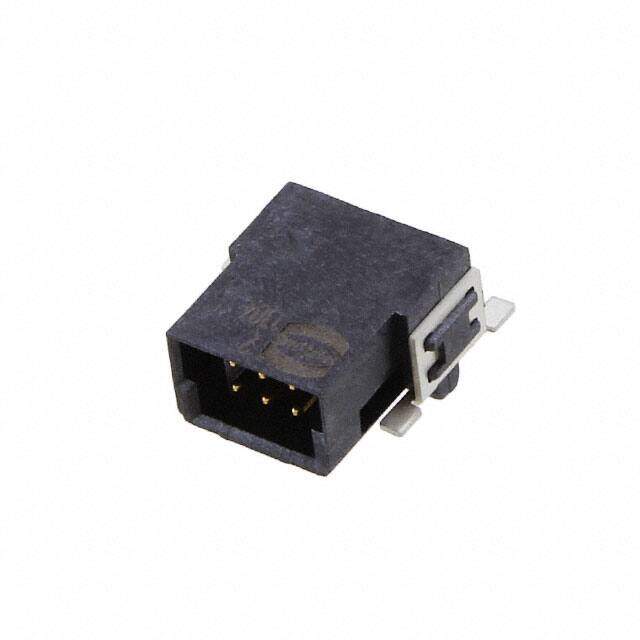

CONN HEADER SMD R/A 6POS 1.27MM
PDF
/
Buying Options
Total Price: USD $4
Unit Price: USD $3.997781
≥1 USD $3.997781
≥200 USD $1.595174
≥560 USD $1.542658
≥1120 USD $1.5164
Inventory: 3140
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Copper Alloy
Mount Surface Mount
Mounting Type Surface Mount, Right Angle
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -55°C~125°C
Packaging Cut Tape (CT)
Series har-flex?
Feature Board Guide, Solder Retention
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 6
Number of Rows 2
Gender Male
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Orientation Right Angle
Insulation Height 0.167 4.25mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 2.3A
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Row Spacing - Mating 0.050 (1.27mm)
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
