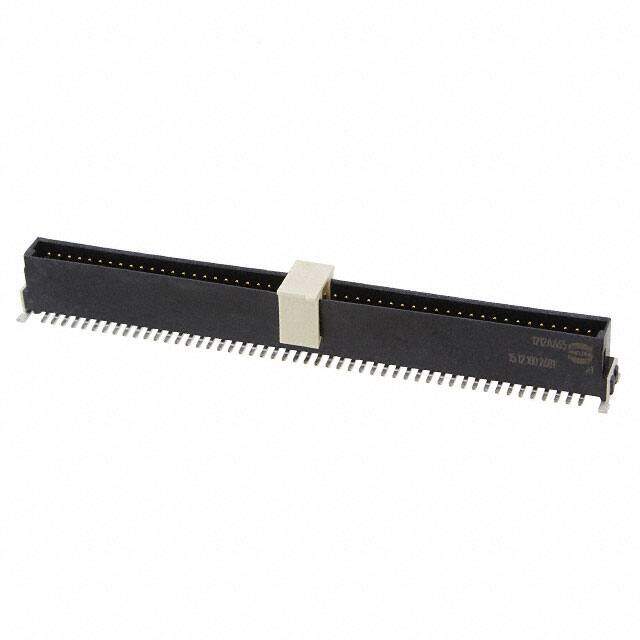

15121002601000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Board to Board & Mezzanine Connectors HAR-FLEX STRT MALE 100P 3.25 HGT PL1
PDF
/
Buying Options
Total Price: USD $8.2
Unit Price: USD $8.2016
≥1 USD $8.2016
≥10 USD $7.38144
≥100 USD $6.597272
Inventory: 1155
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 8 Weeks
Physical
Contact Material Copper Alloy
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Liquid Crystal Polymer
Technical
Operating Temperature -55°C~125°C
Packaging Cut Tape (CT)
Series har-flex?
Feature Board Guide, Pick and Place, Solder Retention
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 100
Number of Rows 2
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Orientation Straight
Insulation Height 0.319 8.10mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 700mA
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Row Spacing - Mating 0.050 (1.27mm)
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Contact Length - Mating 0.157 4.00mm
Dimensions
Stack Height 3.25mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
