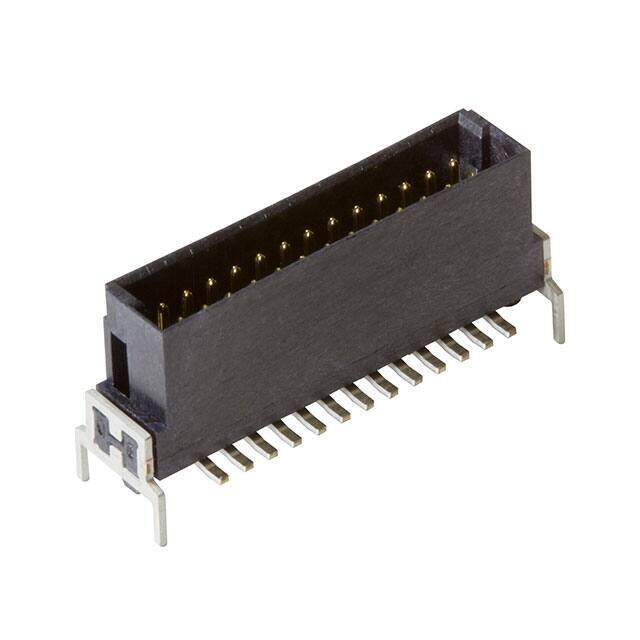

15120262401000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
har-flex? ROHS3Compliant Board Guide Solder Retention Gold Connector Header -55C~125C 0.157 4.00mm
PDF
/
Buying Options
Total Price: USD $4.47
Unit Price: USD $4.4704
≥1 USD $4.4704
≥10 USD $4.06208
≥100 USD $3.578696
Inventory: 194
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Alloy
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Technical
Operating Temperature -55°C~125°C
Packaging Tape & Reel (TR)
Series har-flex?
Feature Board Guide, Solder Retention
Part Status Active
Termination Solder
Connector Type Header
Number of Positions 26
Number of Rows 2
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Insulation Height 0.325 8.25mm
Style Board to Board or Cable
Number of Positions Loaded All
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Row Spacing - Mating 0.050 (1.27mm)
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Contact Length - Mating 0.157 4.00mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
