15120162601000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

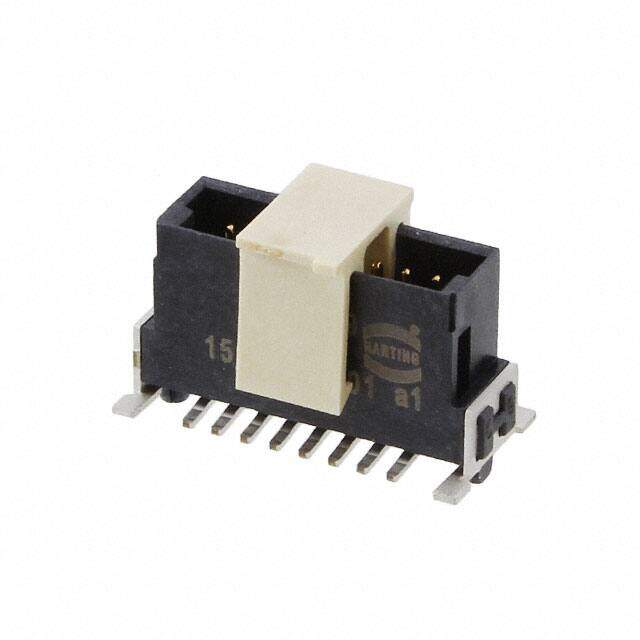

Board to Board & Mezzanine Connectors HAR-FLEX STRT MALE 16P 3.25 HGT PL1
PDF
/
Buying Options
Total Price: USD $3.14
Unit Price: USD $3.1416
≥1 USD $3.1416
≥10 USD $2.84944
≥100 USD $2.510464
Inventory: 2086
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 6 Weeks
Physical
Contact Material Copper Alloy
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Liquid Crystal Polymer
Technical
Operating Temperature -55°C~125°C
Packaging Cut Tape (CT)
Series har-flex?
Feature Board Guide, Pick and Place, Solder Retention
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 16
Number of Rows 2
HTS Code 8536.69.40.40
Fastening Type Push-Pull
Contact Finish - Mating Gold
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Total Number of Contacts 16
Orientation Straight
Insulation Height 0.319 8.10mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 1.7A
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Number of Conductors ONE
Reliability COMMERCIAL
Row Spacing - Mating 0.050 (1.27mm)
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Contact Length - Mating 0.157 4.00mm
Mating Contact Pitch 0.05 inch
Dimensions
Stack Height 3.25mm
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
Lead Free Lead Free
