15110682601000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

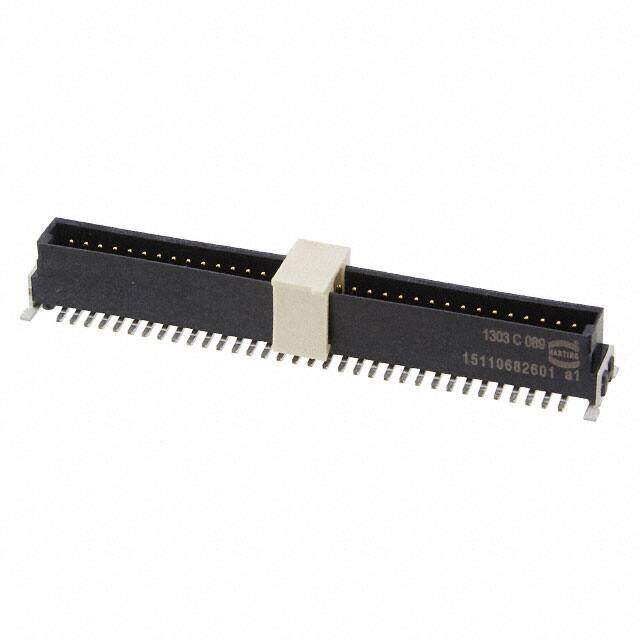

HARTING 15 11 068 2601000 Board-To-Board Connector, 1.75 mm Height, 1.27 mm, 68 Contacts, Header, har-flex Series
PDF
/
Buying Options
Total Price: USD $7.3
Unit Price: USD $7.2952
≥1 USD $7.2952
≥10 USD $6.56216
≥100 USD $5.864584
Inventory: 402
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 4 Weeks
Physical
Contact Material Copper Alloy
Mount Surface Mount
Mounting Type Surface Mount
Contact Shape Square
Insulation Material Liquid Crystal Polymer (LCP)
Housing Material Liquid Crystal Polymer
Technical
Operating Temperature -55°C~125°C
Packaging Cut Tape (CT)
Series har-flex?
JESD-609 Code e3
Feature Board Guide, Pick and Place, Solder Retention
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
Connector Type Header
Number of Positions 68
Number of Rows 2
Gender Male
Fastening Type Push-Pull
Contact Finish - Mating Gold
Contact Type Male Pin
Orientation Straight
Insulation Height 0.260 6.60mm
Style Board to Board or Cable
Number of Positions Loaded All
Current Rating 1.5A
Pitch - Mating 0.050 1.27mm
Insulation Color Black
Row Spacing - Mating 0.050 (1.27mm)
Shrouding Shrouded - 4 Wall
Contact Finish - Post Tin
Contact Length - Mating 0.157 4.00mm
Dimensions
Stack Height 1.75mm
Compliance
Material Flammability Rating UL94 V-0
REACH SVHC No SVHC
RoHS Status ROHS3 Compliant
Lead Free Lead Free
