15110502601000
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description

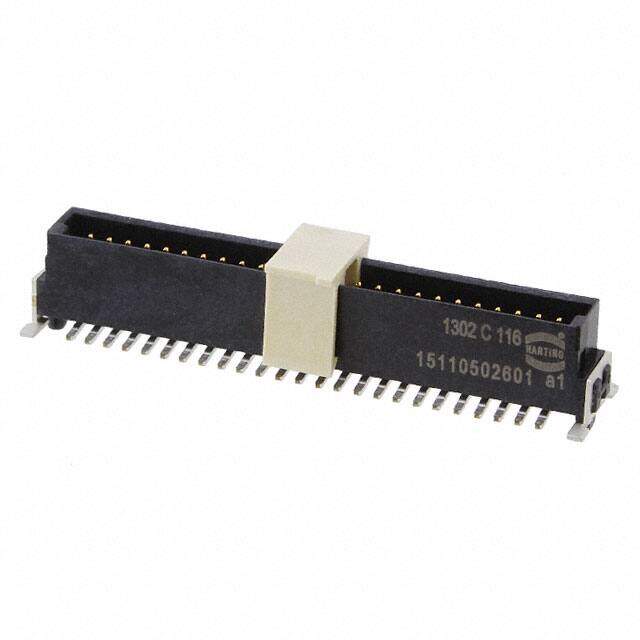

HARTING - 15 11 050 2601000 - HEADER, 1.27MM, H:1.75MM, SMT, 50WAY
PDF
/
Buying Options
Total Price: USD $5.62
Unit Price: USD $5.6232
≥1 USD $5.6232
≥10 USD $5.0864
≥100 USD $4.453592
Inventory: 751
Minimum: 1
-
+
Technical Details
Compliance
Lead Free Lead Free
RoHS Status ROHS3 Compliant
REACH SVHC No SVHC
Material Flammability Rating UL94 V-0
Dimensions
Stack Height 1.75mm
Technical
Contact Length - Mating 0.157 4.00mm
Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.050 (1.27mm)
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Current Rating 800mA
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.260 6.60mm
Orientation Straight
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Gender Male
Number of Rows 2
Number of Positions 50
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide, Pick and Place, Solder Retention
Series har-flex?
Packaging Cut Tape (CT)
Operating Temperature -55°C~125°C
Physical
Housing Material Liquid Crystal Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 4 Weeks
