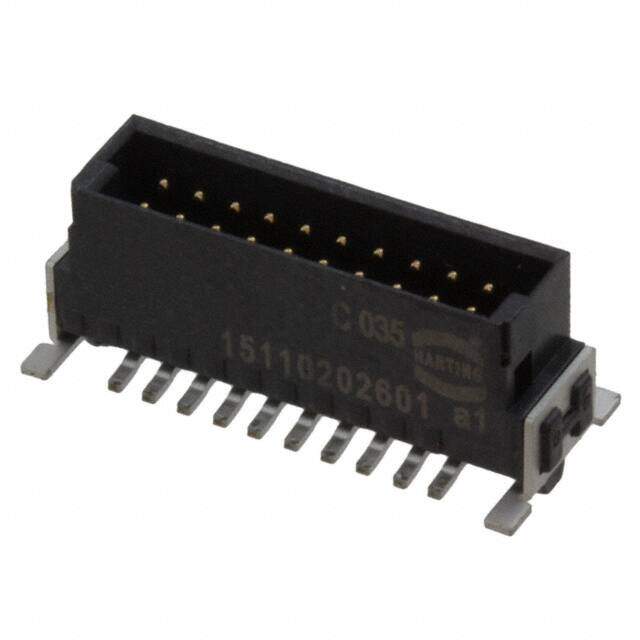

15110202601000

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Conn Shrouded Header (4 Sides) M 20 POS 1.27mm Solder ST SMD har-flex? Reel
PDF
/
Buying Options
Total Price: USD $4.04
Unit Price: USD $4.0392
≥1 USD $4.0392
≥10 USD $3.66696
≥100 USD $3.231184
Inventory: 115
Minimum: 1
-
+

Technical Details

Compliance

Lead Free Lead Free
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Dimensions

Stack Height 1.75mm

Technical

Contact Length - Mating 0.157 4.00mm
Contact Finish - Post Tin
Shrouding Shrouded - 4 Wall
Row Spacing - Mating 0.050 (1.27mm)
Insulation Color Black
Pitch - Mating 0.050 1.27mm
Current Rating 1.7A
Number of Positions Loaded All
Style Board to Board or Cable
Insulation Height 0.260 6.60mm
Orientation Straight
Contact Type Male Pin
Contact Finish - Mating Gold
Fastening Type Push-Pull
HTS Code 8536.69.40.40
Number of Rows 2
Number of Positions 20
Connector Type Header
ECCN Code EAR99
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Guide, Pick and Place, Solder Retention
Series har-flex?
Packaging Cut Tape (CT)
Operating Temperature -55°C~125°C

Physical

Housing Material Liquid Crystal Polymer
Insulation Material Liquid Crystal Polymer (LCP)
Contact Shape Square
Mounting Type Surface Mount
Mount Surface Mount
Contact Material Copper Alloy

Supply Chain

Factory Lead Time 5 Weeks
