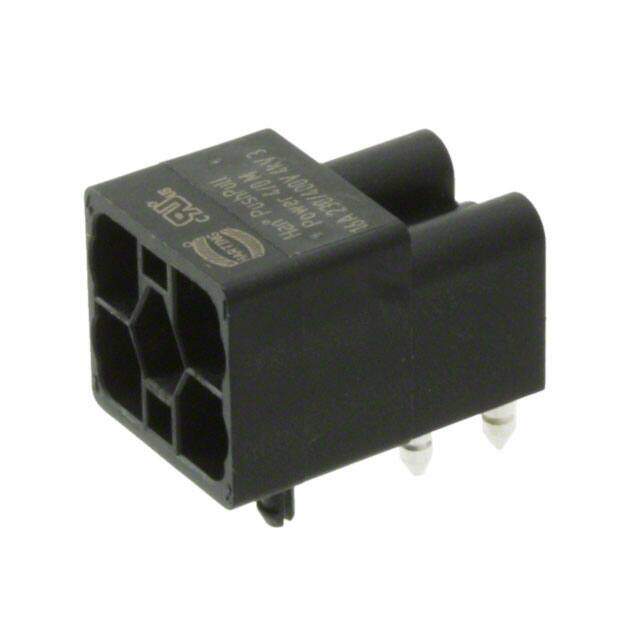

09350023003

HARTING
RoHS
RoHS RoHS compliant
Package /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description Heavy Duty Power Connectors R/A MALE INSERT PANEL MNT SOLDER
PDF
/
Buying Options
Total Price: USD $12.69
Unit Price: USD $12.6896
≥1 USD $12.6896
≥10 USD $11.24816
≥100 USD $9.806104
≥500 USD $8.364048
≥1000 USD $7.671858
Inventory: 1065
Minimum: 1
-
+

Technical Details

Compliance

RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0

Technical

Empty Shell NO
Shrouding Shrouded - 4 Wall
Insulation Color Black
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.583 14.80mm
Total Number of Contacts 5
Current Rating (Amps) 16A
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance NO
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Fastening Type Push-Pull
Voltage - Rated 690V
Number of Positions 5
Connector Type Insert
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Feature Board Lock
Series Han? PushPull
Packaging Bulk
Operating Temperature -40°C~70°C

Physical

Insulation Material Thermoplastic
Contact Shape Circular
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material NOT SPECIFIED

Supply Chain

Factory Lead Time 9 Weeks
