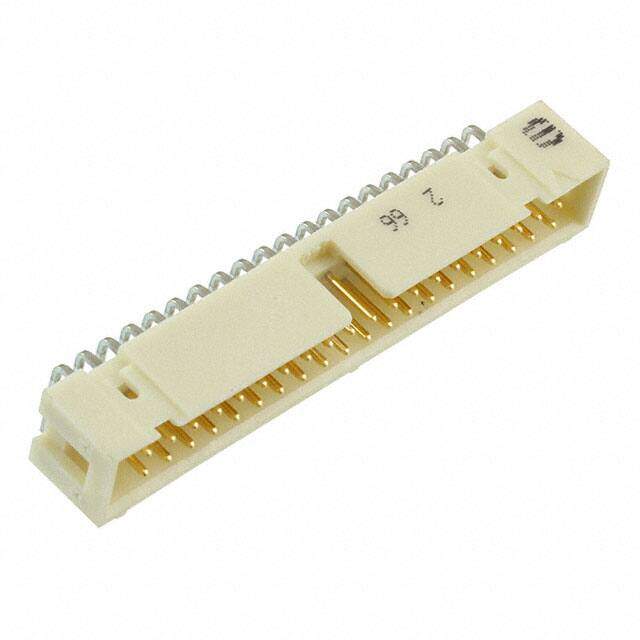

09195406323
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
SEK ROHS3Compliant COMMERCIAL UL Connector Header -55C~125C 1A 1000VAC V 0.48inch
PDF
/
Inventory: 7740
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length - Termination 0.114 inch
Technical
Dielectric Withstanding Voltage 1000VAC V
Polarization Key CTR W/GUIDE SLOTS
Mating Contact Pitch 0.1 inch
Insulation Resistance 1000000000Ohm
Rated Current (Signal) 1A
Body Depth 0.48 inch
UL Flammability Code 94V-0
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.240 6.10mm
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.114 2.90mm
Row Spacing - Mating 0.100 (2.54mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Beige
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.366 9.30mm
Orientation Straight
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance NO
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Fastening Type Latch Holder
Additional Feature STANDARDS: MIL-C-83503; DIN 41651, POLARIZED
Number of Rows 2
Number of Positions 40
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Keying Slot
Series SEK
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Contact Shape Square
Mounting Type Through Hole, Right Angle
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 10 Weeks
