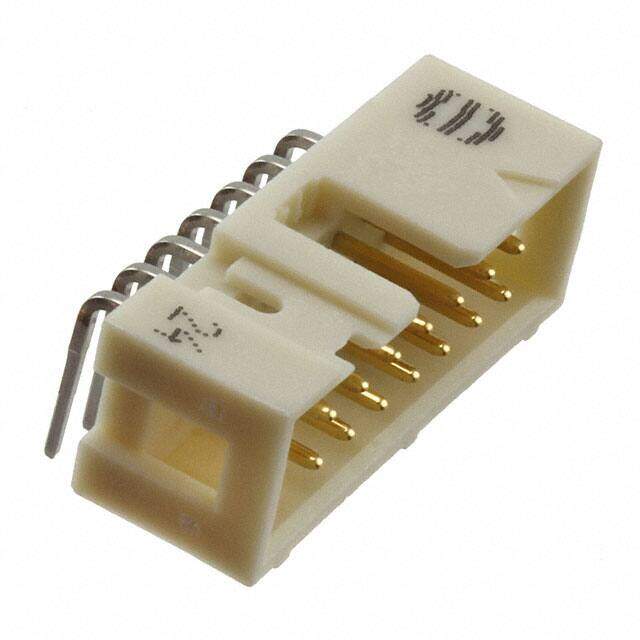

Headers & Wire Housings SEK-19 SV HT ML LP ANG29 14P PL2
PDF
/
Buying Options
Total Price: USD $2.35
Unit Price: USD $2.3496
≥1 USD $2.3496
≥10 USD $2.04688
≥100 USD $1.829168
≥500 USD $1.524301
≥1000 USD $1.306536
≥3000 USD $1.158458
Inventory: 296
Minimum: 1
-
+
Technical Details
Supply Chain
Factory Lead Time 10 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole, Right Angle
Contact Shape Square
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Series SEK
Feature Keying Slot
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 14
Number of Rows 2
Additional Feature STANDARDS: MIL-C-83503; DIN 41651
HTS Code 8536.69.40.40
Fastening Type Latch Holder
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance NO
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Orientation Right Angle
Insulation Height 0.366 9.30mm
Style Board to Cable/Wire
Number of Positions Loaded All
Pitch - Mating 0.100 2.54mm
Insulation Color Beige
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 1 inch
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.114 2.90mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Contact Length - Mating 0.240 6.10mm
PCB Contact Pattern RECTANGULAR
UL Flammability Code 94V-0
Body Depth 0.48 inch
Rated Current (Signal) 1A
Insulation Resistance 1000000000Ohm
Mating Contact Pitch 0.1 inch
Polarization Key CTR W/GUIDE SLOTS
Dielectric Withstanding Voltage 1000VAC V
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
