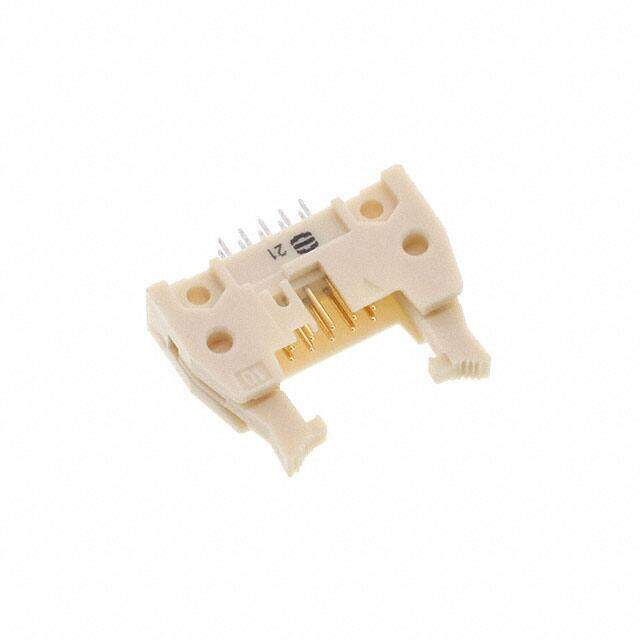

09195107904
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
Headers & Wire Housings SEK19 SV HTML STD STR29 RLG 10P PL3
PDF
/
Inventory: 4748
Minimum: /
The more specific your information, the faster response you will get.
Please complete the following form with the details of your request part and
contact information to get a quote.
Quotation Consultation
Technical Details
Supply Chain
Factory Lead Time 7 Weeks
Physical
Contact Material Copper Alloy
Mount Through Hole
Mounting Type Through Hole
Contact Shape Square
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Technical
Operating Temperature -55°C~125°C
Packaging Bulk
Series SEK
Feature Keying Slot, Mounting Flange
Pbfree Code yes
Part Status Active
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Termination Solder
ECCN Code EAR99
Connector Type Header
Number of Positions 10
Number of Rows 2
Additional Feature STANDARDS: IEC 60603-13; DIN EN 60603-13
HTS Code 8536.69.40.40
Fastening Type Latch Lock/Eject Hooks, Long
Contact Finish - Mating NOT SPECIFIED
MIL Conformance NO
DIN Conformance YES
IEC Conformance YES
Filter Feature NO
Contact Type Male Pin
Mixed Contacts NO
Option GENERAL PURPOSE
Insulation Height 0.681 17.30mm
Style Board to Cable/Wire
Number of Positions Loaded All
Current Rating 2A
Pitch - Mating 0.100 2.54mm
Insulation Color Beige
Number of Conductors ONE
Reference Standard UL
Reliability COMMERCIAL
Body Length or Diameter 1.787 inch
Row Spacing - Mating 0.100 (2.54mm)
Contact Length - Post 0.114 2.90mm
Shrouding Shrouded - 4 Wall
Number Of PCB Rows 2
Contact Finish - Post Tin
Contact Length - Mating 0.228 5.80mm
PCB Contact Pattern RECTANGULAR
Body Breadth 0.331 inch
Contact Gender Male
UL Flammability Code 94V-0
Body Depth 0.681 inch
Rated Current (Signal) 1A
Overall Contact Length 0.650 16.51mm
Mating Contact Pitch 0.1 inch
Polarization Key CTR W/GUIDE SLOTS
Durability 50 Cycles
Dimensions
Length - Termination 0.114 inch
Compliance
Material Flammability Rating UL94 V-0
RoHS Status ROHS3 Compliant
