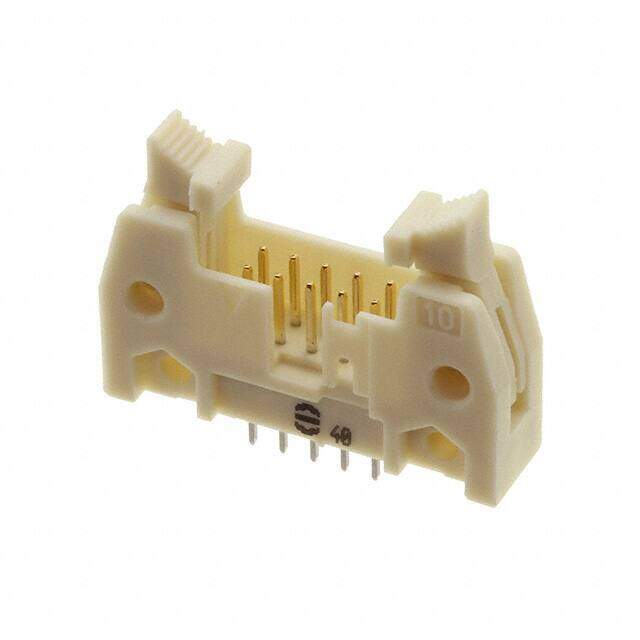

09195106914
RoHS
RoHS compliant
RoHS compliantPackage /
Category Connectors, Interconnects / Rectangular Connectors - Headers, Male Pins
Description
SEK ROHS3Compliant COMMERCIAL UL Connector Header -55C~125C 2A 0.335inch
PDF
/
Buying Options
Total Price: USD $2.24
Unit Price: USD $2.2352
≥1 USD $2.2352
≥10 USD $2.03016
≥100 USD $1.788776
≥500 USD $1.520482
≥1000 USD $1.296882
≥3000 USD $1.162718
Inventory: 53
Minimum: 1
-
+
Technical Details
Compliance
RoHS Status ROHS3 Compliant
Material Flammability Rating UL94 V-0
Dimensions
Length - Termination 0.114 inch
Technical
Polarization Key POLARIZED HOUSING
Mating Contact Pitch 0.1 inch
Overall Contact Length 0.650 16.51mm
Rated Current (Signal) 2A
Body Depth 0.681 inch
UL Flammability Code 94V-0
Body Breadth 0.335 inch
PCB Contact Pattern RECTANGULAR
Contact Length - Mating 0.228 5.80mm
Contact Finish - Post Tin
Number Of PCB Rows 2
Shrouding Shrouded - 4 Wall
Contact Length - Post 0.114 2.90mm
Row Spacing - Mating 0.100 (2.54mm)
Reliability COMMERCIAL
Reference Standard UL
Number of Conductors ONE
Insulation Color Beige
Pitch - Mating 0.100 2.54mm
Number of Positions Loaded All
Style Board to Cable/Wire
Insulation Height 0.681 17.30mm
Orientation Straight
Option GENERAL PURPOSE
Mixed Contacts NO
Contact Type Male Pin
Filter Feature NO
IEC Conformance YES
DIN Conformance YES
MIL Conformance NO
Contact Finish - Mating NOT SPECIFIED
Fastening Type Latch Lock/Eject Hooks, Short
Additional Feature STANDARDS: IEC 60603-13; DIN EN 60603-13
Number of Rows 2
Number of Positions 10
Connector Type Header
Termination Solder
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Part Status Active
Pbfree Code yes
Feature Keying Slot, Mounting Flange
Series SEK
Packaging Bulk
Operating Temperature -55°C~125°C
Physical
Insulation Material Polycyclohexylenedimethylene Terephthalate (PCT), Glass Filled
Contact Shape Square
Mounting Type Through Hole
Mount Through Hole
Contact Material Copper Alloy
Supply Chain
Factory Lead Time 7 Weeks
